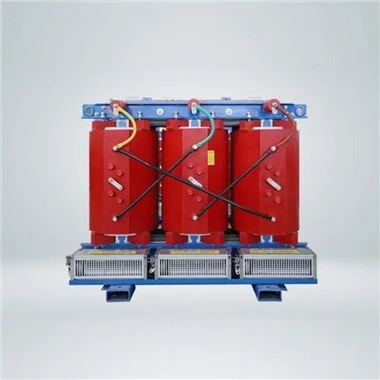

Zog Txuag Qhuav Distribution Transformer

Zog Txuag Qhuav Distribution Transformer

Lub tshuab ziab khaub ncaws qhuav yog siv dav hauv cov teeb pom kev zoo hauv zos, cov tsev siab siab, tshav dav hlau, dav hlau CNC machinery thiab lwm qhov chaw. Cov txheej txheem cua txias tau muab faib ua cua txias (AN) thiab cua txias (AF). Nyob rau hauv tej huab cua txias, lub transformer yuav khiav tsis tu ncua rau ib tug ...

Xa kev nug

Hauj lwm lawm

Lub tshuab ziab khaub ncaws qhuav yog siv dav hauv cov teeb pom kev zoo hauv zos, cov tsev siab siab, tshav dav hlau, dav hlau CNC machinery thiab lwm qhov chaw.

Cov txheej txheem cua txias tau muab faib ua cua txias (AN) thiab cua txias (AF). Nyob rau hauv tej huab cua txias, lub transformer yuav khiav tsis tu ncua rau ib ntev lub sij hawm nyob rau hauv lub rated peev. Thaum yuam cua txias, cov zis muaj peev xwm ntawm transformer tuaj yeem nce 50 feem pua. Nws yog tsim rau kev ua haujlwm tsis sib xws, lossis kev ua haujlwm kub ceev. Vim tias qhov loj ntawm qhov poob thiab impedance voltage thaum lub sij hawm overload, nws yog nyob rau hauv lub lag luam uas tsis yog-economic lub xeev, yog li nws yuav tsum tsis txhob nyob rau hauv tas li overload ua hauj lwm rau lub sij hawm ntev.

Specification

Hom: Henan Fengyuan Fais Fab Technology Co., Ltd.

Qauv: SCB9, SCB10, SCB11

Rated zog: 10KVA- 4000KVA

Cov khoom tseem ceeb: tag nrho tooj liab coil, zoo silicon steel ntawv

Tawm tswv yim voltage: AC 6KV-38.5KV

Cov zis hluav taws xob: AC 0 4-10.5KV

Kev ua tau zoo: 295 feem pua

Zaus: 50/60Hz

Rwb thaiv tsev tsis kam: Ntau dua lossis sib npaug rau 20MQ

Rwb thaiv tsev chav: F chav kawm

Warranty: 3 xyoos

Nco tseg: AC yog hloov tam sim no, cov tswv yim thiab cov zis hluav taws xob tuaj yeem hloov kho raws li tus neeg siv xav tau

Qhov zoo

1. Muaj zog rwb thaiv tsev

2. Cov nplaim hluav taws kub hnyiab, tawg-pov thawj, tsis muaj kuab paug, tsis muaj kev saib xyuas, thiab tuaj yeem ntsia tau rau hauv qhov chaw thauj khoom, txo cov nqi peev thiab txuag nqi.

3. Kev tiv thaiv kev puas tsuaj zoo heev. Epoxy resin yog nplaim-retardant, nplaim-retardant thiab nws tus kheej-extinguishing, thiab yuav tsis ua rau lwm yam kev puas tsuaj xws li tawg.

4. Zoo tiv thaiv luv luv thiab xob laim.

5. Lub plhaub yog ua los ntawm stainless hlau, txias phaj thiab aluminium alloy.

6. Tsawg khiav lag luam poob thiab kev ua haujlwm siab

7. Muaj peev xwm overload
