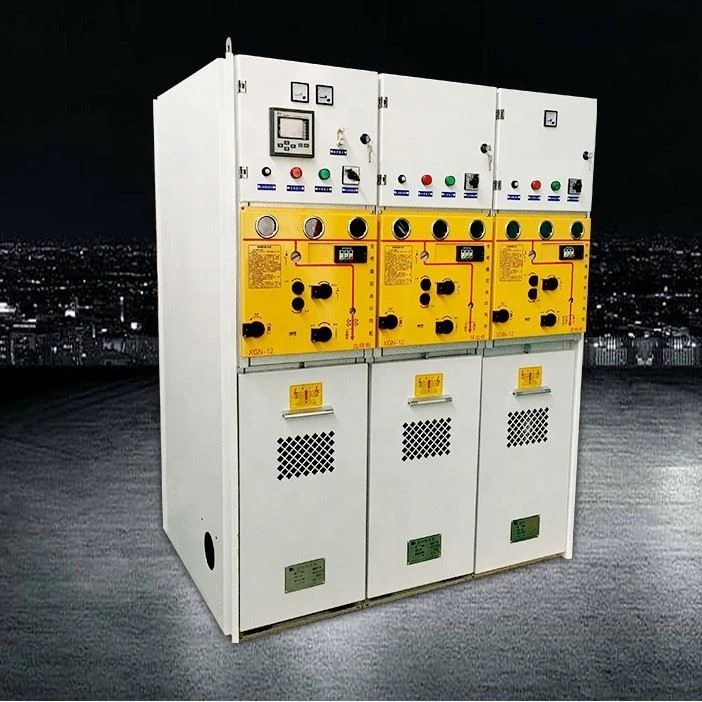

SF6 GIS Switchgear Advantage

Kev piav qhia

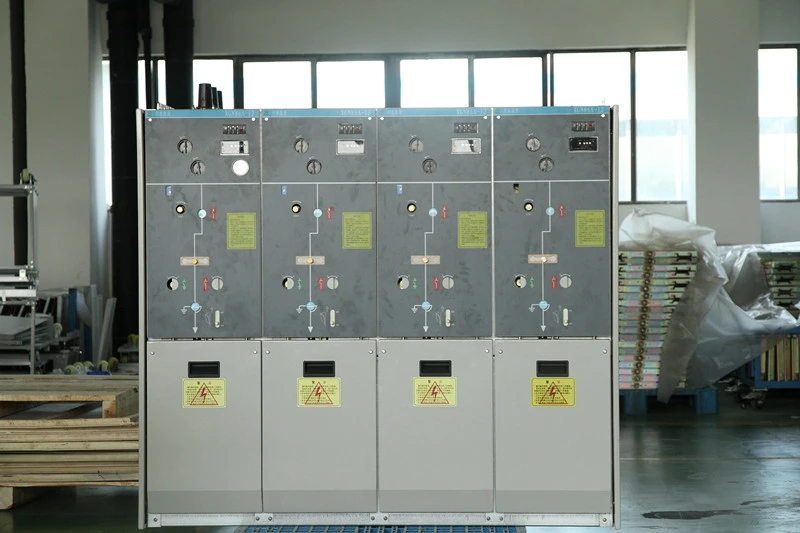

Peb inflatable SF6 hlau foob tag nrho rwb thaiv tsev series nplhaib network hloov txee tau dhau qhov kev xeem ntawm lub teb chaws occlusal hluav taws xob kuaj chaw. Dav siv nyob rau hauv 10KV / 6K lub zog xa hluav taws xob, nws yog qhov nyiam hloov khoom siv rau ntau tus neeg siv hauv nroog thiab nyob deb nroog.

hloov txee yog modular chav tsev hom, uas tuaj yeem ua ke raws li lub hom phiaj sib txawv. Los ntawm kev sib xyaw ua ke ntawm cov chav nyob ruaj khov thiab nthuav dav, uas lub substation ua tau raws li qhov xav tau ntawm compact switchgear saj zawg zog siv.

Inflatable nplhaib SF6 txee tau muab faib ua cov txheej txheem uas tsis yog-expandable configuration thiab expandable txheem configuration. Vim yog kev sib xyaw ua ke ntawm tag nrho module thiab ib nrab module thiab nws tus kheej scalability, nws muaj qhov tshwj xeeb yooj yooj yim. SF6 inflatable nplhaib txee siv GB tus qauv. Nyob rau hauv cov xwm txheej ntawm sab hauv (20 degree) khiav lub neej tsim ntawm ntau tshaj 30 xyoo.

Ib puag ncig tej yam kev mob

(1) Haum Qhov Siab: Tsawg dua lossis sib npaug rau 2000mSuitable

(2) Kub: -40 degree ~ ntxiv rau 55 degree txheeb ze

(#) Cov av noo: Txhua hnub txhais tau tsawg dua lossis sib npaug li 95 feem pua, txhua hli txhais tau tsawg dua lossis sib npaug li 90 feem pua

(4) Kev puas tsuaj ntawm av qeeg: Tsawg dua lossis sib npaug rau Qib 8

Lub npe tag nrho ntawm GIS yog roj insulated hlau enclosed switchgear. Nws yog ib qho khoom siv hluav taws xob uas muaj hluav taws xob muaj xws li cov hluav taws xob hluav taws xob, cov tsheb thauj mus los, cov hloov hluav taws xob, cov hluav taws xob hloov hluav taws xob, cov khoom siv tam sim no, cov hluav taws xob ntes, bushings, riam hauv av, thiab lwm yam. GIS siv sulfur hexafluoride (SF6) gas nrog rwb thaiv tsev zoo heev thiab arc extinguishing kev ua tau zoo raws li rwb thaiv tsev thiab arc extinguishing nruab nrab, thiab kaw tag nrho cov high-voltage hluav taws xob Cheebtsam nyob rau hauv ib tug grounded hlau kheej kheej.

Raws li ib txwm qhib hom khoom faib khoom AIS, nws yog nyob rau hauv ib theem paub tab ntawm kev loj hlob hauv Suav teb thiab muaj qee yam kev tsim khoom thiab kev ua haujlwm. Nws tso siab rau huab cua thiab insulators los thaiv cov khoom nyob hauv av thiab los ntawm theem mus rau theem. Nws lub busbar raug nthuav tawm thiab ncaj qha rau hauv kev sib cuag nrog huab cua. Lub Circuit Court breaker tuaj yeem yog ntawm cov kab hluav taws xob lossis lub tank, nrog lub tes tsho ceramic raws li cov khoom siv casing thiab cov rwb thaiv tsev sab nraud. Nws tus yam ntxwv yog qhov kev ncua deb ntawm sab nraud yog qhov loj thiab hauv pem teb yog qhov loj.

Qhov txawv ntawm AIS thiab GIS

1. Cov qauv sib txawv

GIS yog tus cwj pwm los ntawm kev sib xyaw ua ke ntawm theem sib cais, peb-theem ntau lub tog raj kheej, thiab cov qauv sib xyaw hauv nws lub plhaub qauv. Txoj kev loj hlob ntawm GIS casing los ntawm theem sib cais mus rau peb-theem lub tog raj kheej tau ntxiv miniaturized GIS. Tam sim no, lub zej zog thoob ntiaj teb tau ua tiav qhov yooj yim ntawm tag nrho 300kV peb-theem systems thiab kev koom ua ke ntawm 550kV busbar peb-theem systems.

Cov txheej txheem ntawm AIS cov cuab yeej yog qhov tseeb, uas yog qhov tsim nyog rau kev tu thiab kho txhua hnub los ntawm cov neeg ua haujlwm cuam tshuam. Tag nrho cov qauv yog yooj yim, cov qauv qauv yog qhov tseeb, thiab cov khoom siv hluav taws xob yog qhov tseeb, uas yog qhov tsim nyog rau kev ua haujlwm.

2. Ntau qhov chaw

GIS muaj qhov zoo ntawm cov hneev taw me me, ntim me me, lub teeb yuag, thiab tag nrho cov khoom raug kaw tsis muaj kev cuam tshuam ib puag ncig. Lub tshuab ua haujlwm tsis muaj roj lossis gasification, thiab muaj kev ntseeg siab ua haujlwm siab. GIS txais tag nrho cov kev thauj mus los thaiv, uas yooj yim rau nruab, luv luv hauv lub voj voog, thiab tus nqi qis qis; Kev saib xyuas haujlwm yog me me thiab lub sijhawm luv luv. Lub thawv hom GIS txais kev sib txuas ntawm peb-theem mechanical linkage, nrog rau tus nqi qis txhua yam tsis ua haujlwm.

Cov khoom siv AIS npog thaj tsam dav thiab muaj ntau qhov chaw raug, uas yooj yim cuam tshuam los ntawm huab cua yam tsis zoo thiab tsis haum rau kev nyab xeeb ntawm cov khoom siv.

3. Superior tawg kev ua tau zoo

Lub Circuit Court breaker txais lub zog ntawm nws tus kheej lub zog arc extinguishing chamber raws li lub hauv paus ntsiab lus tshiab arc extinguishing (ib tug hybrid qauv ntawm tus kheej lub zog thermal expansion thiab auxiliary compressed cua ntaus ntawv), tag nrho siv lub zog ntawm lub arc nws tus kheej. Gas insulated tag nrho cov khoom siv hluav taws xob sib xyaw ua ke, cov khoom siv hluav taws xob hauv cov khoom siv hluav taws xob feem ntau muaj xws li cov hluav taws xob hluav taws xob, cov hluav taws xob sib cais, cov hloov hauv av, cov tsheb thauj mus los, cov khoom siv hluav taws xob, thiab lwm yam khoom siv tseem ceeb. Ntau qhov chaw hloov pauv hauv cov chaw tsim hluav taws xob thiab cov chaw nres tsheb yog ua los ntawm GIS, uas nyob hauv ib cheeb tsam me me thiab yooj yim los tswj. Nws tseem txawv ntawm high-voltage switchgear.

4. Tsawg poob thiab suab nrov

Qhov induced magnetic teb ntawm GIS casing yog me me, yog li qhov eddy tam sim no poob yog me me, txo qhov poob ntawm hluav taws xob. Kev siv lub caij nplooj ntoos hlav mechanism ua rau muaj suab nrov ua haujlwm. Qhov tsis zoo: GIS muaj qhov tsis zoo ntawm tus nqi siab, kev teeb tsa tsis yooj yim thiab kev sim, tsis yooj yim, thiab tsis yooj yim txij nkawm thiab nthuav dav.

AIS kuj pheej yig, yooj yim rau nruab thiab sim, muaj qhov yooj yim, thiab yooj yim dua rau kev saib xyuas thiab nthuav dav.

5. Lub hom phiaj

GIS ua tau zoo dua AIS, tab sis vim qhov sib txawv ntawm tus nqi thiab kev tswj hwm, AIS yuav tsis tawm tag nrho rau lub sijhawm ntau. Siv cov cuab yeej saib xyuas ntse thiab kuaj xyuas kom ntev mus txog txij nkawm thiab zam kev ua haujlwm tsis tsim nyog.



PHOOJ YWG





Cov khoom no feem ntau yog customized.
Peb yog cov chaw tsim khoom thiab muaj lub tuam txhab kev tshaj lij uas tuaj yeem tsim thiab muab kev daws teeb meem raws li cov neeg siv khoom xav tau.
Thov hu rau peb cov neeg muag khoom kom tau txais cov duab kos duab

Nov yog peb cov neeg siv khoom piv txwv rau koj siv

Zimbabwean cov neeg siv khoom

RMU BOM LIST
Qhov project: ZETDC/INTER/04/2022
Lub npe ntawm Cov Khoom Muag: Ntiv Nplhaib Cov Chav Tsev
1 11kV 2 Way SF6 RMU C plus T plus C CVC
Tsis muaj Cheebtsam Unit Qty Maker
1.1 Hom: C Unit
1.1.1 Load hloov Manul 630A-20kA Teeb 1 Fengyuan
1.1.2 Them zaub Teeb 1 Fengyuan
1.1.3 Ammeter Pc 3 Fengyuan
1.1.4 Kub thiab av noo tswj Teeb 1 Fengyuan
1.1.5 Cable taub hau Teeb 1 Fengyuan
1.1.6 Tsawg Voltage Box Teeb 1 Fengyuan
1.1.7 Txee Teeb 1 Fengyuan
Tsis muaj Cheebtsam Unit Qty Maker
1.2 Hom: V Unit
1.2.1 Circuit Breaker Manual 630A-20kA Teeb 1 Fengyuan
1.2.2 Kev Tiv Thaiv Relay Teeb 1 Fengyuan
1.2.3 Them zaub Teeb 1 Fengyuan
1.2.4 Ammeter Pc 3 Fengyuan
1.2.5 CT Teeb 1 Fengyuan
1.2.6 Kub thiab av noo tswj Teeb 1 Fengyuan
1.2.7 Cable taub hau Teeb 1 Fengyuan
1.2.8 Tsawg Voltage Box Teeb 1 Fengyuan
1.2.9 Txee Teeb 1 Fengyuan
2 11kV 3 Way SF6 RMU C plus C plus T plus C CCVC
Tsis muaj Cheebtsam Unit Qty Maker
2.1 Hom: C Unit
2.1.1 Load hloov Manul 630A-20kA Teeb 1 Fengyuan
2.1.2 Them zaub Teeb 1 Fengyuan
2.1.3 Ammeter Pc 3 Fengyuan
2.1.4 Kub thiab av noo tswj Teeb 1 Fengyuan
2.1.5 Cable taub hau Teeb 1 Fengyuan
2.1.6 Tsawg Voltage Box Teeb 1 Fengyuan



Yog xav paub ntxiv, thov koj xav tiv tauj peb
