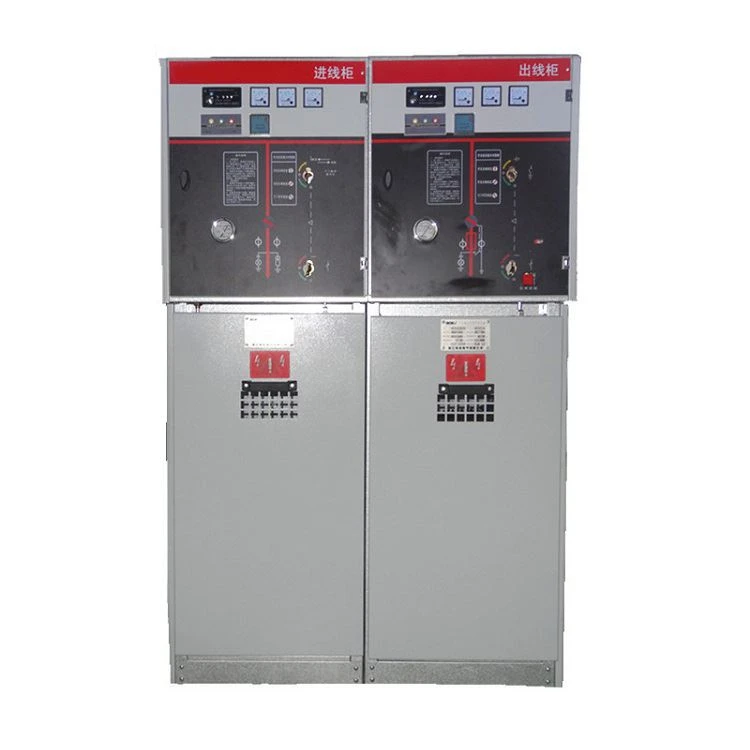

Vaj Huam Sib Luag 10 KV Huab Cua Insulated Switchgear Ntu Lub Hauv Paus
Vaj Huam Sib Luag 10 kV Cua Insulated Switchgear Ntiv Nplhaib Lub Cev Sib Txawv Lub Hauv Chav Loj (RMU) nrog SF6 load hloov raws li lub ntsiab hloov, lub txee tag nrho yog tsim nyog rau lub hwj chim faib hluav taws xob, thiab nws kuj muaj cov khoom sib txuas thiab nthuav dav hlau txuas ntxiv. Nws muaj cov yam ntxwv ntawm yooj yim ...
Hauj lwm lawm
Vaj Huam Sib Luag 10 kV Vaj Huab Cua Lub Pwm Ntsig Switchgear Ntu Lub Hauv Paus
Ntiv nplhaib Loj Chav (RMU) nrog SF6 load hloov raws li lub ntsiab hloov, lub txee tag nrho yog tsim nyog rau lub zog faib hluav taws xob, thiab nws kuj muaj qhov sib txuam thiab nthuav dav hlau txuas hloov pauv. Nws muaj cov yam ntxwv ntawm cov qauv yooj yim, ua haujlwm yooj yim, cuam tshuam kev cuam tshuam thiab txhim kho yooj yim. VCB series ntawm cov hlau nplaum txuas mus tas li tuaj yeem ua ke nrog RCB.
Qhov chaw pabcuam a) Cov cua kub: qhov kub tshaj plaws: +40 ℃; qis tshaj kub: -5 ℃ b) Vaum: txhua hli nruab nrab av noo 95%; txhua hnub nruab nrab av noo 90%. c) Qhov siab tshaj plaws teeb tsa: 2000m d) Pom tsis muaj huab cua ua kom muaj kuab paug los ntawm kev txhim kho thiab kev sib tw ntawm cov roj, chav, thiab lwm yam. e) Tsis pub muaj kev sib ntaus sib tua heev |
|
| Tsis yog | Yam khoom | Chav Nyob | Tsis | ||
| 1 | Rated voltage | kV | 12 | 24 | 36 |
| 2 | Nyob ua ntau zaus | Hz | 50/60 | ||
| 3 | Nyob tam sim no | A | 630/800 | 1630 | |
| 4 | 1 min fais fab zaus muaj qhov cuam tshuam voltage (ntub / qhuav) | kV | 38/48 | 50/60 | 70/80 |
| 5 | Xob laim impulse tiv taus voltage | kV | 75 | 125/150 | 195 |
| 6 | Nyob luv luv Circuit Court tawg tam sim no (ncov) | kV | 80 | 63 | 50/40 |
| 7 | Rated nquag load thiab kaw Circuit Court txhaum tam sim no | kA | 63 | 50 | 50/40 |
| 8 | Nyob hloov pauv tam sim no | A | 1700 | 1200 | 800 |
| 9 | Nyob luv Circuit Court ua tam sim no (ncov) | kA | 80 | 63 | 50/40 |
| 10 | Rated cable (kab) them txhawm rau tam sim no | A | 50 thiab 10 | ||
| 11 | Cable them txhaum tam sim no nyob rau hauv kev ua txhaum | A | 20 | 20 | 50 |
| 12 | Nyob mas tam sim no (ncov) | kA | 80 | 63 | 50/40 |
| 13 | Lub sijhawm luv luv siv tam sim no (2s) | kA | 31.5 | 25 | 16 |
| 14 | Mechanism lub neej | Lub Sijhawm | 5000 | 2000 | 2000 |
Peb Kev Xa Tawm
Peb tuaj yeem xa cov khoom muag los ntawm huab cua, hiav txwv lossis nthuav qhia. Peb tuaj yeem muab cov tuam txhab thauj khoom zoo rau koj kom yooj yim rau koj xaiv. Peb lub sijhawm khoom xa tuaj yog 15 txog 20 hnub. Yog tias tshwj xeeb kev hloov kho xav tau, lub sijhawm yuav qeeb.

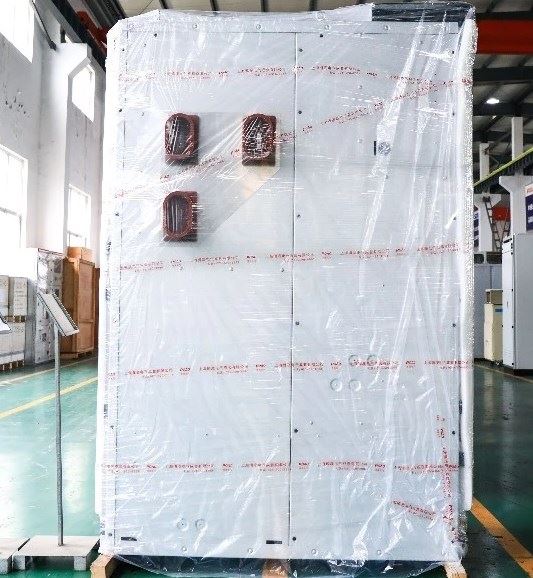

Txheem ntoo lub thawv rau sab nrauv ntim
|
|
Yog tias koj xav tau kev ntim khoom tshwj xeeb, thov qhia peb ua ntej!
Yam khoom muaj feem xyuam
Tuam txhab kev taw qhia
Txawj Teev Vaj
Thaum koj yuav cov khoom lag luam tsim los ntawm Fengyuan Fais Fab Technology tuaj yeem tau txais 24 lub hlis kev ua tau zoo tom qab kev xa khoom, lossis yog tias muaj qee qhov tshwj xeeb, thov tsis txhob yig tiv tauj peb ...
