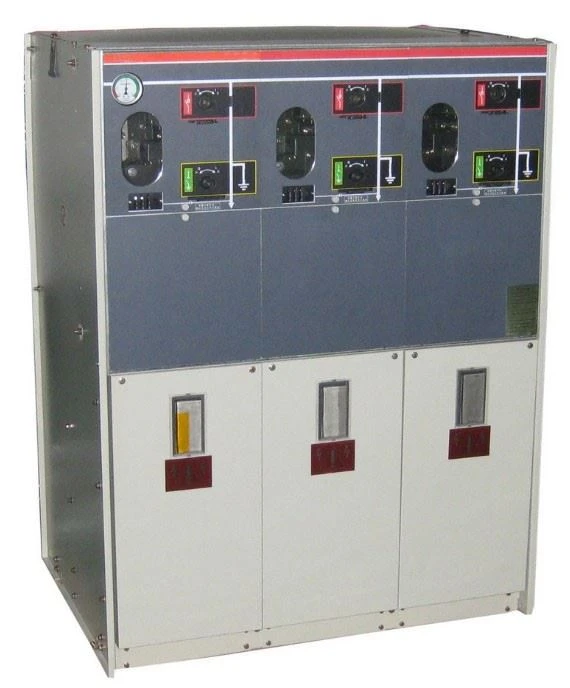

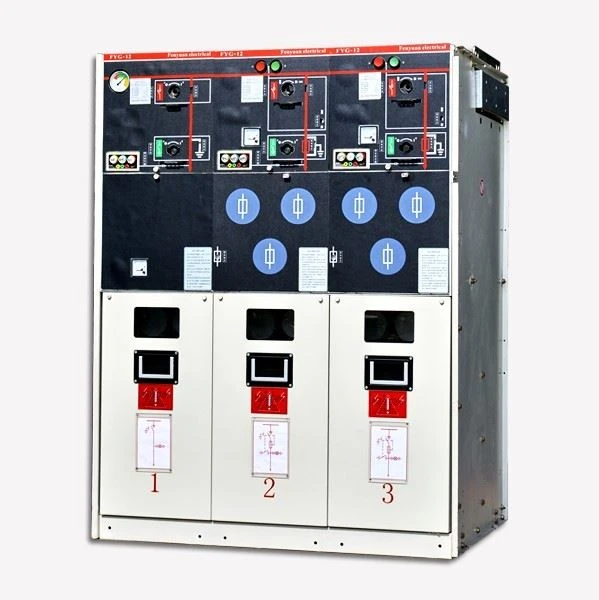

SF6 Nplhaib Main Unit 25KV Switchgear

Peb inflatable SF6 hlau foob tag nrho rwb thaiv tsev series nplhaib network hloov txee tau dhau qhov kev xeem ntawm lub teb chaws occlusal hluav taws xob kuaj chaw. Dav siv nyob rau hauv 10KV / 6K lub zog xa hluav taws xob, nws yog qhov nyiam hloov khoom siv rau ntau tus neeg siv hauv nroog thiab nyob deb nroog. hloov txee yog modular chav tsev hom, uas tuaj yeem ua ke raws li cov hom phiaj sib txawv. Los ntawm kev sib xyaw ua ke ntawm cov chav nyob ruaj khov thiab nthuav dav, uas lub substation ua tau raws li qhov xav tau ntawm kev siv compact switchgear saj zawg zog.

Xa kev nug

Hauj lwm lawm

SF6 insulated switchgear yog tsim rau nruab nrab voltage hluav taws xob faib system nrog ib tug ntsuas voltage ntawm 11kV thiab 40.5kV. Nws tuaj yeem siv los ua RMUs hauv lub zog hluav taws xob sib txuas, kev ua txhaum cais cov keyboards thiab cov keyboards sectionalizing. Yog tias nruab nrog cov khoom siv hluav taws xob faib hluav taws xob (FTU / DTU) thiab cov khoom siv sib txuas lus, SF6 insulated switchgear tuaj yeem sib txuas lus nrog lub chaw tswj hwm, ntsuas qhov hluav taws xob cable, tam sim no, thiab lwm yam, thiab saib xyuas cov xwm txheej ua haujlwm.

SF6 gas insulated nplhaib lub ntsiab chav tsev (RMU / C-GIS):

Lub nplhaib ruaj ntseg / ntxiv rau RMR hom SF6 roj hluav taws xob lub nplhaib tseem ceeb yog kev koom ua ke nrog SF6 infill txee uas sib sau ua ke nrog LBS, VCB, Fuse, ES, DS, thiab lwm yam.

Los ntawm kev sib koom ua ke zoo tshaj plaws ntawm hom nyob ruaj ruaj thiab hloov tau yooj yim, RMR hom SF6 gas-insulating compact kaw hlau switchgear (Nplhaib lub ntsiab) nrog kev saws me nyuam ntawm cov qauv tsim, tsim nyog rau cov neeg siv kawg lossis lub network node, lub sijhawm no ua tau raws li qhov xav tau ntawm txhua tus. hom switching substations txee-hom transformer substations thiab cable ceg txee. Nws cim ntawm nws cov qauv compact, kev nyab xeeb thiab kev ntseeg tau, kev ua neej ntev thiab kev saib xyuas tsis pub dawb.

Cov khoom no ua raws li cov qauv ntawm IEC60420,

Ib puag ncig tej yam kev mob

(1) Haum Qhov Siab: Tsawg dua lossis sib npaug rau 2000mSuitable

(2) Kub: -40 degree ~ ntxiv rau 55 degree txheeb ze

(#) Cov av noo: Txhua hnub txhais tau tsawg dua lossis sib npaug li 95 feem pua, txhua hli txhais tau tsawg dua lossis sib npaug li 90 feem pua

(4) Kev puas tsuaj ntawm av qeeg: Tsawg dua lossis sib npaug rau Qib 8

Khoom feature:

Vaj huam sib luag qauv: Lub vaj huam sib luag lub cev yog kaw los ntawm 2 hli aluminium-zinc plated steel phaj tom qab multi-bending. Nws yog yooj yim, ruaj, muag heev thiab peculiar.

1. Busbar compartment: Lub busbar compartment nyob rau sab saum toj thiab txuas nrog cov vaj huam sib luag nyob ze.

2. Load break switch yog ib chav sib cais nrog SF6 roj.

3. Cable compartment: Kwv yees li ntawm 75 feem pua ntawm chav txuas cable thiab txhim kho fuse, earthing hloov thiab PT.

4. Mechanism chamber thiab interlock: Lub chamber muaj kev khiav hauj lwm mechanism, mechanism interlock, qhia txoj hauj lwm, auxiliary contact trip coil, charge indicator and interlock.

5. LV chamber: Nws yog xauv rau saum. Nws tsuas yog siv rau kev txhim kho ntsuas, relay thiab lub cev muaj zog.

6. Circuit Court breaker compartment: Lub Circuit Court breaker (SF6 los yog nqus tsev vacuum) nyob rau hauv qab load so hloov.

Technical data

Yam khoom	Chav tsev	Hloov	Hloov-fuse	Nqus Circuit Court breaker
Rated voltage	kV ua	24	24	24
Fais fab zaus withstand voltage	kV ua	50	50	50
Impulse withstand voltage	kV ua	125	125	125
Rated tam sim no	A	630	2001)	200
Breaking peev xwm:
active load	A	630
kaw lub voj	A	670
off load cable them	A	141
tawm load transformer	A		20
av txhaum	A	160
ntiaj teb txhaum cable them	A	91
luv-circuit breaking tam sim no	kA		saib 2)	16
Ua kom muaj peev xwm	kA	40	saib 2)	40
Lub sijhawm luv luv tam sim no 0,5 sec	kA			16
Lub sijhawm luv luv tam sim no 1 sec	kA			16
Lub sijhawm luv luv tam sim no 3 sec	kA	16

sf6 (5)

sf6 (6)

SF6 (9)
