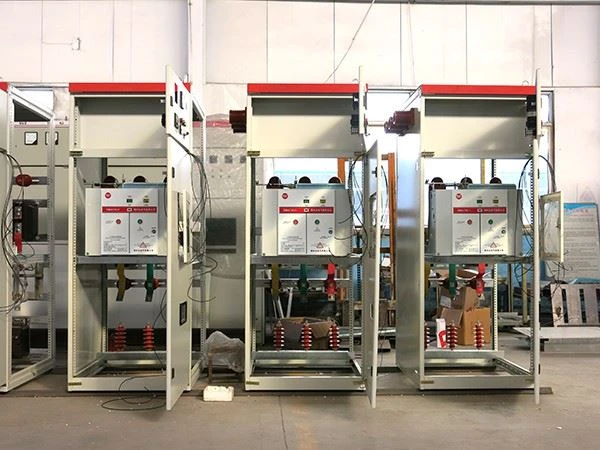

33KV Hluav Taws Xob Fais Fais Fais Fais Hloov Hloov
Structure Description Lub switchgear yog lub thawv-hom hlau-kaw ruaj ruaj qauv thiab lub cubicle muaj profiesand G profiles sib sau ua ke los ntawm ob peb qhov kev sib txuas daim .Nws muab faib ua plaub lub compartments, xws li busbar compartment .CB compartment, metering compartment thiab cable compartment .Cov khoom Kev ua haujlwm yuav tsum tau ua los ntawm CNC xuas nrig ntaus tshuab, CNC dabtsi yog khoov tshuab thiab sophisticated tshuab muab nyob rau hauv CNC ua chaw, kom ntseeg tau siab precisopm ntawm daim ntawv, txoj hauj lwm thiab qhov ntev, ceev thiab raug ua, fixible rau kev sib xyaw ntawm cov kev xaiv sib txawv, uas muaj peev xwm ua tau raws li cov kev xav tau sib txawv rau cov neeg siv khoom. .
Hauj lwm lawm
Cov yam ntxwv tseem ceeb
1.Lub cubicle yog ntawm cov qauv sib dhos, tsis muaj vuam, siab txhua yam muaj zog thiab kos duab apperance.
2.Lub nraub qaum qaum yog rau GN30-12 rotarydisconnect hloov thiab qis dua rau GN19-12C disconnect hloov .Lub tshuab cuam tshuam cov cuab yeej ua haujlwm raws li cov txheej txheem tuaj yeem muab kev tiv thaiv kev nyab xeeb rau kev ua haujlwm ntawm tus kheej thiab khoom siv.
3.Lub ntsiab hloov tau txais yuav yog hom monoblock, kev xaiv xws li ZN63-12(VS1-12) thiab VD4-12
4.Compulsory mechanical locking method yog ua hauj lwm nyob rau hauv lub interlocks ntawm lub ntsiab keyboards
, disconnectors thiab cubicle qhov rooj kom tau raws li 'tsib pov thawj' cuam tshuam kev ua haujlwm, txaus siab rau kev sib xyaw ua ke nrog lub nplhaib tseem ceeb.
Tsis muaj. | Yam khoom | Chav tsev | Technical data | ||
1 | Rated voltage | kV ua | 3.6, 7.2, 12 | ||
2 | Rated tam sim no | A | 630 1000 | 1250 2000 | 2500 3150 |
3 | Rated luv Circuit Court breaking tam sim no | kA | 20 | 31.5 | 40 |
4 | Rated lub sij hawm luv luv tiv taus tam sim no | kA | 20 | 31.5 | 40 |
5 | Rated ncov tiv taus tam sim no | kA | 50 | 80 | 100 |
6 | Rated luv Circuit Court ua tam sim no | kA | 50 | 80 | 100 |
7 | Rated duration ntawm luv luv Circuit Court | s | 4 | ||
8 | Qib kev tiv thaiv | IP2X | |||
9 | Bus system | Ib lub tsheb npav ib leeg, ib lub npav nrog bypass, ob lub npav | |||
10 | Txoj kev ua haujlwm | Electromagnetism, caij nplooj ntoos hlav cia zog | |||
11 | Daim ntawv dimension | mm | 950^1000x2300 (hauv qab 1250A) | ||
