Armored Hlau Enclosed Switchgear

KYN61-40.5 armored hlau enclosed high voltage switchgear 1. Daim ntawv thov: KYN61 series high voltage switchgear 35KV 40.5KV yog haum rau 40.5kV fais fab tis system ntawm peb-theem AC 50Hz ib lub tsheb npav los yog ib lub tsheb npav ib leeg. Nws yog tsuas yog siv rau lub hwj chim faib system ...

Xa kev nug

Hauj lwm lawm

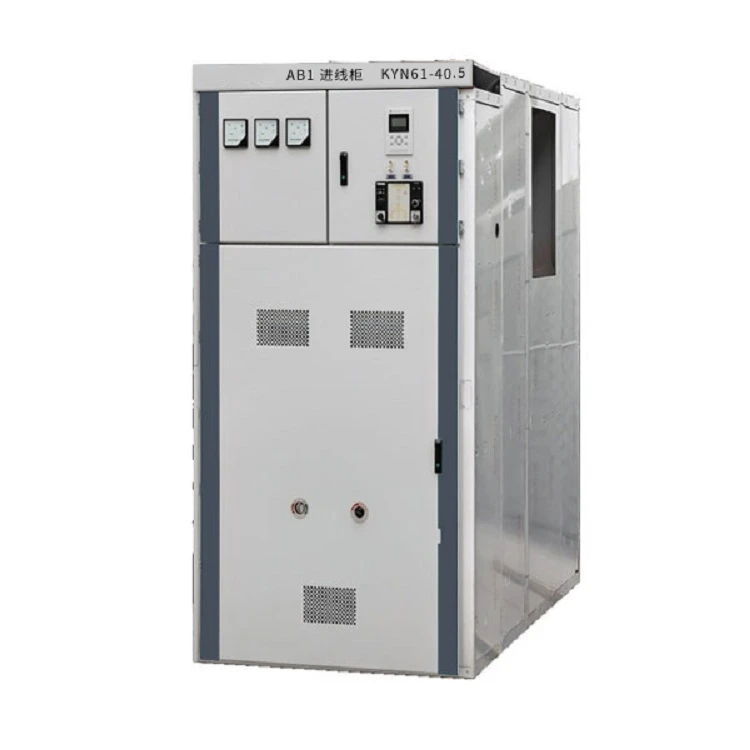

KYN61-40.5 armored hlau enclosed high voltage switchgear

1. Daim ntawv thov:

KYN61 series high voltage switchgear 35KV 40.5KV yog haum rau 40.5kV fais fab tis system ntawm peb -theem AC 50Hz ib lub tsheb npav lossis ib ntu kev tsheb npav. Nws yog tsuas yog siv rau lub zog faib hluav taws xob ntawm cov chaw tsim hluav taws xob, cov chaw ua haujlwm substations, kev lag luam thiab kev lag luam mining, thiab tseem rau kev tswj hwm. Kev tiv thaiv thiab saib xyuas circuits. Nws kuj tseem siv tau rau kev ua haujlwm tsis tu ncua.

2. Ib puag ncig tej yam kev mob

· Siv qhov siab: 1000m ~ 4000m

· Siv tau qhov kub thiab txias: -40℃~ +45 degree

· Tus txheeb ze av noo: nruab nrab txhua hnub Tsawg dua lossis sib npaug li 95%, qhov nruab nrab txhua hli Tsawg dua lossis sib npaug li 90%

· Kev puas tsuaj av qeeg: Tsawg dua lossis sib npaug li 8

Armoured Metal Enclosed Switchgear

3. Technical Data

Tsis muaj.	Yam khoom	Chav tsev	Cov ntaub ntawv
1	Rated voltage	KV	40.5
2	Rated tam sim no	A	6,301,250,160,020,000,000
3	Rated luv -circuit tam sim no	KA	20,25,31.5,40
4	Rated ncov tiv tau tam sim no	KA	50,63,80,100
5	Luv-lub sij hawm tiv taus tam sim no (4s)	KA	20,25,31.5,40
6	Rwb thaiv tsev: Fais fab zaus / xob laim	KV	95/185
7	Chav kawm tiv thaiv		IP4X
8	Kev xaiv Circuit Court breakers		ZN85, VD4, HD4, LN2-40.5 thiab lwm yam.
9	Kev ua haujlwm mechanism		Caij nplooj ntoos hlav mechanism; Permanent magnetic actuator
10	Lub zog ua haujlwm	V	DC: 110,220; PIB: 110,220
11	Zuag qhia tag nrho (Dav * Dav * Qhov siab)	mm	1400(1200)x2800x2600 1680x2800(3100)x2800
12	Qhov hnyav	KG	1800
