HV XGN66-12 35KV Switchgear Board

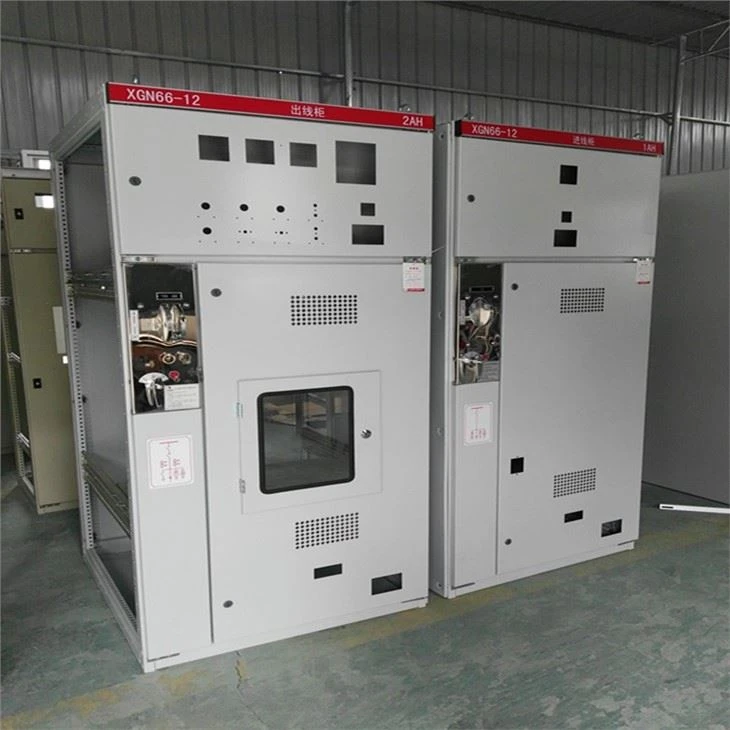

HV XGN66-12 35KV switchgear boardXGN66-12 hom tsau kaw switchgear yog peb lub tuam txhab tiam tshiab ntawm high-voltage hluav taws xob cov khoom ua tiav. Cov khoom no yog qhov me me, tsuas yog 50 feem pua ntawm qhov ntim ntawm cov khoom hloov pauv zoo tib yam: cov khoom siv hluav taws xob muaj kev ntseeg siab thiab kev ua haujlwm zoo: Lub ntsuas phoo mechanism yog txhim khu kev qha thiab yooj yim. Lub txee hloov yog ib qho kev ua tiav sab hauv tsev ntawm 3.6.7.2.12kV peb-theem alternating tam sim no 50Hz ib leeg busbar segmentation rau kev txais thiab faib hluav taws xob hluav taws xob. Nws kuj muaj lub luag haujlwm ntawm kev tswj hwm, tiv thaiv thiab saib xyuas lub voj voog. Nws tuaj yeem siv rau hauv ntau hom fais fab nroj tsuag, substations, industrial thiab mining enterprises, high-sawv vaj tse thiab lwm qhov chaw. Nws kuj tseem tuaj yeem ua ke nrog lub nplhaib network txee thiab siv hauv kev hloov chaw.
Hauj lwm lawm
HV XGN66-12 35KV switchgear board
Cov khoom no tau absorbed txawv teb chaws advanced technology. Nws yog qhov me me, tsuas yog 50 feem pua ntawm qhov ntim ntawm qhov hloov pauv zoo tib yam; lub txee yog qhov loj thiab zoo hauv kev ua haujlwm; "tsib pov thawj" kev sib cuam tshuam mechanism, yooj yim thiab lwm yam zoo, lub txee yog 3.6, 7.12kV peb-theem fais fab 50Hz Lub busbar ib leeg conveys tag nrho cov khoom siv sab hauv tsev kom tau txais thiab faib lub zog. Nws kuj muaj lub luag haujlwm ntawm kev tswj hwm, tiv thaiv thiab saib xyuas lub voj voog. Nws tuaj yeem siv rau hauv ntau hom fais fab nroj tsuag, substations thiab industrial thiab mining enterprises nyob rau hauv high-sawv vaj tse thiab lwm qhov chaw. Nws tuaj yeem ua ke nrog lub nplhaib network txee thiab tseem qhib thiab kaw.
Txee
Lub txee lub cev ntawm lub switchgear yog ua los ntawm steel phaj los yog txhuas-zinc phaj thiab ua tiav los ntawm CNC tshuab cuab yeej, uas tsis tsuas yog muaj siab precision tab sis kuj muaj zog tiv thaiv corrosion thiab oxidation kuj. Tag nrho qhov hnyav ntawm lub txee yog sib zog dua li lwm cov khoom txee, thiab cov neeg kho tshuab lub zog yog siab. Kev ua thiab ntau lawm voj voog yog luv. , Cov khoom muaj zog versatility, thiab thaj tsam ntawm ancient av yog me me, uas yog yooj yim rau ntau lawm lub koom haum.
Chav tsev
Lub ntsiab hluav taws xob Cheebtsam ntawm lub switchgear muaj ywj siab compartments. Raws li kev ua haujlwm sib txawv, lawv tau muab faib rau hauv chav nqa khoom, chav tsev busbar, chav cable, thiab chav ntsuas ntsuas relay los ntawm kev faib khoom. Cov chav yog sib cais los ntawm cov hlau tiv thaiv daim hlau. Lub plhaub plhaub yog tag nrho ntawm nws tus kheej hauv av, thiab qib kev tiv thaiv ntawm txhua qhov chaw ncav cuag IP2X; tshwj tsis yog rau chav relay, lwm qhov peb lub compartments muaj lawv tus kheej lub siab nyem raws.
Interlocking ntaus ntawv
Cov pins sib koom ua ke ntawm qhov hloov pauv tseem ceeb, lub tsheb thauj khoom, kev hloov pauv hauv av thiab lub qhov rooj txee txhua tus txais yuav tsum tau siv lub tshuab ntsuas phoo kom tau raws li "tsib kev tiv thaiv" muaj nuj nqi. Lub tsheb ciav hlau tawg tsuas tuaj yeem raug kaw thaum lub tshuab hluav taws xob nyob rau hauv txoj haujlwm qhib / kuaj lossis ua haujlwm; thiab tom qab lub Circuit Court breaker tau qhib, lub propulsion mechanism ntawm lub tawb nqa khoom tsis tuaj yeem ua haujlwm thiab lub tsheb thauj khoom tsis tuaj yeem txav mus los tiv thaiv kev thauj khoom Push-rub circuit breaker handcart.
Txuas hauv av ntaus ntawv
Hauv chav tsev cable, muaj qhov sib cais 6x50mm2 grounding busbar. Lub tsheb npav no tuaj yeem khiav ntawm cov txee uas nyob ib sab thiab ua kom muaj kev sib cuag zoo nrog lub txee kom tsis txhob muaj hluav taws xob poob. Tib neeg lub cev impedance thiab ib puag ncig tej yam kev mob, xyuas kom meej lub cev ua hauj lwm ntawm lub hwj chim system, thiab tiv thaiv xob laim. Qhov phom sij ntawm hluav taws xob zoo li qub tshwm sim thaum xob laim tshwm sim
Lub rhaub
Txhawm rau tiv thaiv qhov txaus ntshai ntawm condensation nyob rau hauv ib qho kev nyab xeeb nrog kub los yog av noo hloov. Nruab cov cua sov hauv chav hluav taws xob hluav taws xob thiab chav cable raws li kev siv nyob rau hauv ib puag ncig saum toj no thiab tiv thaiv corrosion. Lub high-voltage switchgear muaj cov khoom siv cua sov kom yooj yim tswj qhov kub thiab av noo. Thaum qhov kub ntawm lub switchgear qis dua tus nqi yuav tsum tau thiab cov av noo siab dua li qhov yuav tsum tau muaj, cov khoom siv cua sov tau qhib.
Main technical parameters ntawm switchgear | ||
qhov project | chav tsev | Technical Parameters |
Rated voltage | KV | 3.6 7.2 12 |
Rated zog zaus withstand voltage | KV | Rau hauv av, hloov pauv: 42 Fracture: 48 |
Rated xob laim impulse withstand voltage | KV | Rau hauv av, hloov pauv: 75 Fracture: 85 |
Rated zaus | Hz | 50 |
Rated tam sim no | A | 630 1250 |
Rated short-circuit breaking tam sim no (tus nqi zoo) | kA | 20 25 31.5 |
Rated short-circuit ua tam sim no (ntau tshaj tus nqi) | kA | 50 63 80 |
Rated dynamic tsis tu ncua tam sim no (peak tus nqi) | kA | 50 63 80 |
Rated thermal stability tam sim no 4s (tus nqi zoo) | kA | 20 25 31.5 |
Kev tiv thaiv qib | IP2X | |
Dimensions (dav * qhov tob * qhov siab) | mm | 900*1000*2300 |
hnyav | Kg | ≈60 |
