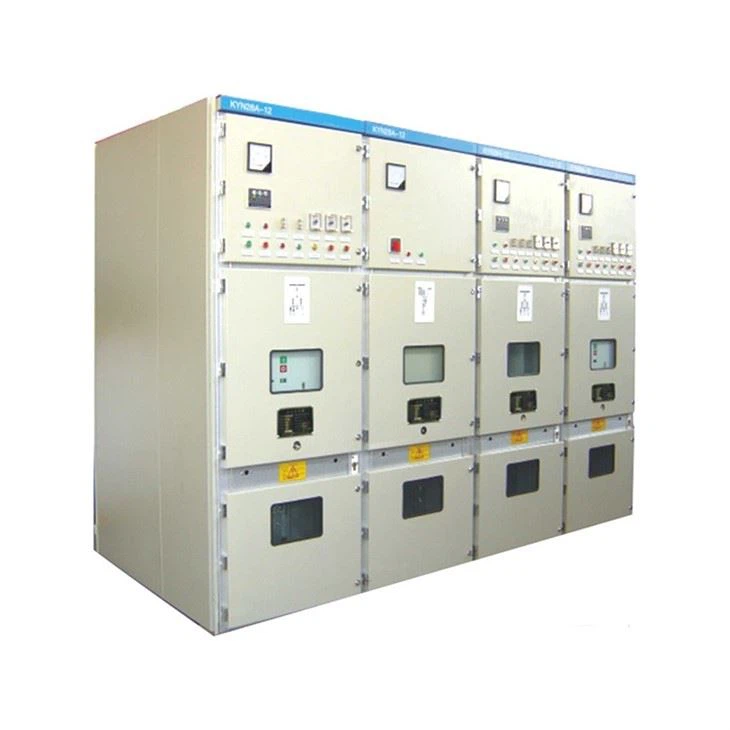

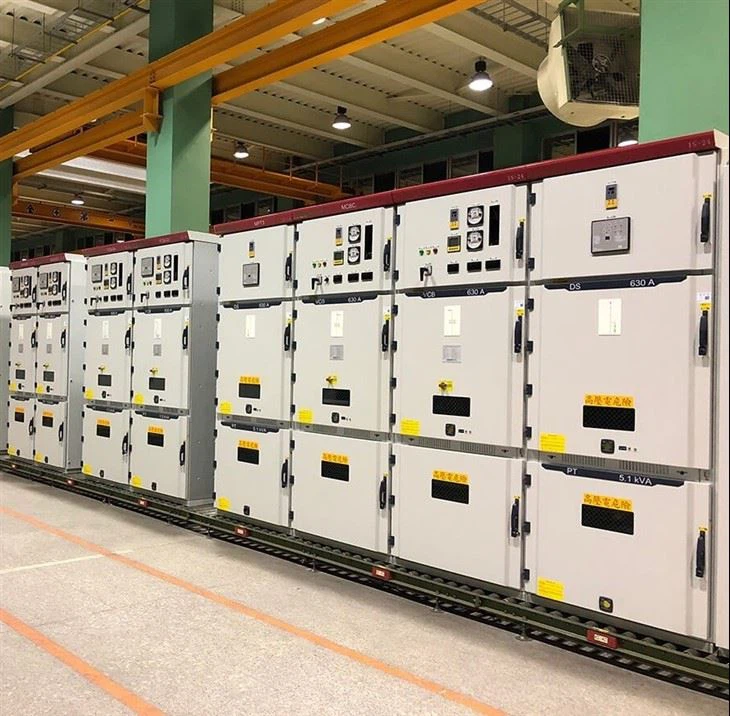

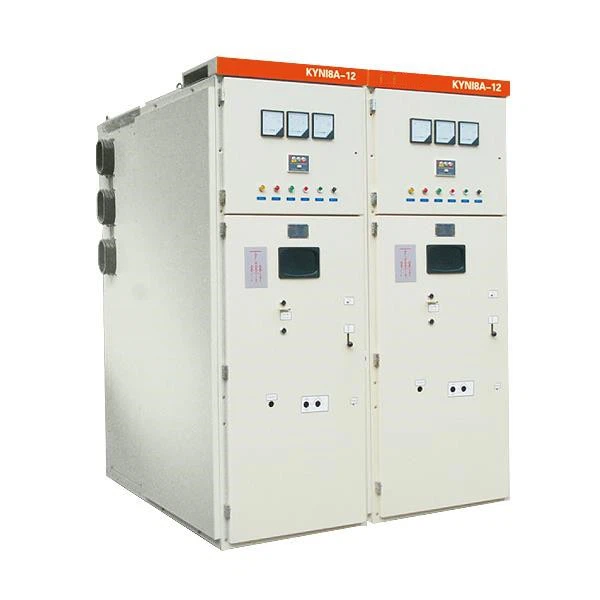

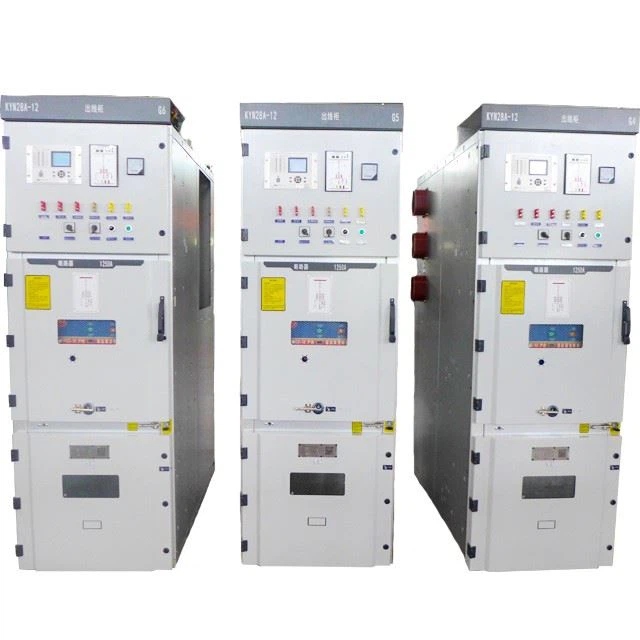

KYN28A 6.3KV Waterproof Sealed Distribution Box

KYN28A-12 hlau clad switchgear hluav taws xob cubicle muaj feem xyuam rau 3.6kV ~ 12kV nrog peb-theem AC 50Hz ib lub tsheb npav lossis ib lub tsheb npav ib leeg. Nws yog tsuas yog siv rau substation thiab tis system ntawm fais fab nroj tsuag, substation, industrial thiab mining enterprises, tsev tsev so, municipal tsim thiab petrochemical sector raws li lub hwj chim txais, hluav taws xob faib thiab Circuit Court tswj, tiv thaiv thiab saib xyuas.

Xa kev nug

Hauj lwm lawm

KYN28A 6.3KV waterproof kaw lub thawv xa khoom

KYN28A-12 series switchgear yog tsim rau tag nrho cov khoom siv hluav taws xob faib hluav taws xob ntawm qhov hluav taws xob 3-12KV, peb-theem AC 50Hz ib lub tsheb npav thiab ib qho chaw tsheb npav. Feem ntau yog siv rau hauv cov chaw tsim hluav taws xob, cov chaw tsim hluav taws xob, cov chaw lag luam thiab cov chaw lag luam mining thiab cov tsev siab siab, raws li tau txais thiab faib hluav taws xob hluav taws xob thiab kev tswj xyuas, tiv thaiv thiab saib xyuas circuits.

1. Kev pabcuam ib puag ncig

Huab cua kub: -5 degree ~ ntxiv rau 40 degree ;

Qhov kub nruab nrab txhua hnub (hauv 24 teev): Tsawg dua lossis sib npaug rau ntxiv rau 35 degree
Qhov siab: Tsawg dua lossis sib npaug li 1000m;
Tus txheeb ze av noo: nyob rau hauv 24h, txhua hnub tus nqi nruab nrab Tsawg dua los yog sib npaug li 95 feem pua, txhua hnub nruab nrab vapor siab tsawg dua los yog sib npaug rau 2.2KPa;
Tus nqi nruab nrab txhua hli Tsawg dua lossis sib npaug li 90 feem pua, txhua hli nruab nrab vapor siab Tsawg dua lossis sib npaug rau 1.8KPa
Cov huab cua nyob ib puag ncig tsis muaj kuab paug ntau los ntawm cov plua plav, pa taws, corrosive thiab / lossis cov pa roj, vapor lossis ntsev paug.

2. Qauv

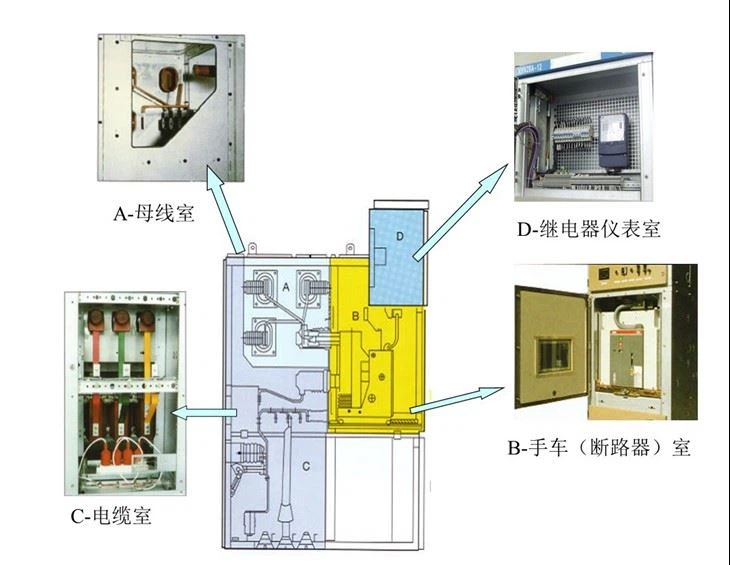

2.1 Kev tiv thaiv
Switchgear enclosure txais kev xa tawm aluminium zinc steel ntawv los ntawm CNC tshuab cuab yeej ua haujlwm, thiab siv ntau txoj haujlwm ua haujlwm muaj zog oxidation tsis kam thiab corrosion kuj, lub teeb yuag, muaj zog mechanism.
Cov ntaub thaiv npog nrog qib kev tiv thaiv IP4X tau muab faib ua plaub qhov sib cais, thaum lub qhov rooj qhib qhov chaw thiab cov hluav taws xob hluav taws xob qhov kev tiv thaiv qib yog IP2X

2.2 Trolley (VCB)
Lub trolley ncej sib sau ua ke nrog nyias steer tom qab CNC tshuab cuab yeej. Lub trolley co-ordinated nrog lub switchgear ua rau cov neeg kho tshuab interlock muaj kev ruaj ntseg thiab txhim khu kev qha. Trolley nrog tib specification yog sib hloov.
Circuit Court breaker trolley yog nruab nrog lub tshuab nqus tsev vacuum thiab lwm yam khoom siv pabcuam, VCB tuaj yeem yog Circuit Court VD4 ntawm ABB lossis VT19 tsim los ntawm peb tus kheej. Nws tuaj yeem raug kaw ruaj khov hauv txoj haujlwm tsis sib txuas, sim txoj haujlwm kom ntseeg tau tias muaj kev cuam tshuam kev cuam tshuam.

2.3 Busbar tivthaiv
Cov ceg tsheb npav txuas nrog lub thawv sib txuas zoo li qub thiab lub tsheb loj tsis muaj lwm yam kev txhawb nqa. Main busbar yog sib cais thiab kho los ntawm bushing nyob rau hauv cov ntaub ntawv ntawm arc tsis ua hauj lwm.
Qhov kev tsim kho no tuaj yeem tiv thaiv kom tsis txhob kis mus rau lwm lub txee.

2.4 Instrument txee
Txhua yam kev hloov, qhov ntsuas qhov ntsuas thiab ntsuas ntsuas thiab lwm yam tuaj yeem raug ntsia ntawm lub qhov rooj ntawm qhov ntsuas. Kev tiv thaiv relay, theem nrab xaim, davhlau ya nyob twg thiab cua hloov, qis-voltage fuses, thiab lwm yam, yog nruab rau hauv lub ntsuas ntsuas.

2.5 Fail-kev ruaj ntseg interlock
Muaj "anti-5" mechanical latch nruab nrab ntawm lub disconnector, VCB thiab vaj huam sib luag qhov rooj, kev ntsuas txhim khu kev qha los tiv thaiv kev ua haujlwm tsis zoo, kev saib xyuas yooj yim thiab nyab xeeb, ua haujlwm yooj yim.

3. Sab nrauv Dimension Thiab Nyhav

Qhov siab H (mm) 2300 (2200)
Qhov dav w (mm)	Rated tam sim no ntawm ceg busbar yog mus txog 1250A Lub sijhawm luv luv tiv thaiv tam sim no yog 40KA	800
	Rated tam sim no ntawm ceg busbar yog mus txog 1600A thiab siab dua	1000
Qhov tob d (mm)	Cable nkag thiab tawm	1500
	Overhead feeder nkag thiab tawm	1660
Qhov hnyav (kg) 700-1200

KYN28A-12 (6)

KYN28A-12 (7)

KYN28A-12 (8)

KYN28A-12 (9)

KYN28A-12 (11)

KYN28A-12 (12)

Factory

CERTIFICATE

CQC

EXHIBITION

LUB TSEV KAWM NTAWV

FAQ

Q5 : Puas yog OEM / ODM muaj?

A: Yog, nws yog! Peb cov khoom tuaj yeem tsim kho. Peb muaj pab pawg tsim thiab engineers, peb tuaj yeem kho cov khoom raws li cov neeg siv khoom kos duab lossis cov kev xav tau.

Q6 : Koj yog cov chaw tsim khoom lossis tuam txhab lag luam?
A: Peb yog lub Hoobkas, Raws li 100 feem pua ntawm cov chaw tsim khoom nrog 20 xyoo kev tsim khoom, peb tuaj yeem tsim cov khoom raws li cov neeg siv khoom xav tau thiab peb tuaj yeem tswj cov khoom zoo 100 feem pua.

Q7 : Tus nqi puas tuaj yeem sib tham?

A: Yog, tus nqi yog sib tham. Nws tuaj yeem hloov pauv raws li koj qhov ntau lossis pob

Q8 :Yuav ua li cas rau kev soj ntsuam?

A: Peb muaj tag nrho cov kev tshuaj xyuas los ntawm cov khoom siv raw mus rau qhov kawg cov khoom suav nrog kev ntsuas kub nce, ntsev tsuag tshuaj ntsuam xyuas tus neeg xyuas pib hom kev xeem, kev sim lub neej.

Q9 :Cov nqe lus them nqi yog dab tsi?

A: T.T, Paypal, Western Union, Alibaba kev ruaj ntseg kev lag luamthiab L/C yog txais tau. 30 feem pua T / T hauv

ua ntej,70 feem puatshuav nyiaj li cas ua ntej khoom xa tuaj.
