KYN61-40.5 Hlau Clad Movable Switchgear

Hauj lwm lawm

KYN61-40.5 hlau clad movable switchgear yog ib qho ua tiav ntawm cov khoom siv hluav taws xob sab hauv tsev nrog peb-theem hloov tam sim no ntawm 50Hz thiab qhov ntsuas hluav taws xob ntawm 40.5kV. Nws yog siv rau kev txais thiab faib hluav taws xob hluav taws xob hauv cov chaw tsim hluav taws xob, cov chaw ua haujlwm substations, thiab kev lag luam thiab kev lag luam mining. Nws tuaj yeem tswj xyuas, tiv thaiv thiab saib xyuas lub voj voog, thiab tseem tuaj yeem siv rau hauv qhov chaw uas nquag ua haujlwm.

Main feature:

1. Cov qauv txee txais yuav cov khoom sib dhos, thiab cov khoom siv hluav taws xob siv cov khoom siv hauv pem teb;

2. Nruab nrog ib hom tshiab ntawm composite insulated lub tshuab nqus tsev Circuit Court breaker, thiab muaj cov yam ntxwv zoo interchangeability thiab yooj yim hloov;

3. Lub ntsia hlau ntsia hlau thawb lub tshuab yog ntsia rau hauv lub tawb nqa khoom, uas tuaj yeem txav tau yooj yim ntawm lub laub thiab tiv thaiv kev ua haujlwm tsis zoo los ntawm kev puas tsuaj rau cov qauv propulsion;

4. Txhua qhov kev ua haujlwm tuaj yeem ua tau nrog lub txee qhov rooj kaw;

5. Lub interlocking ntawm lub ntsiab hloov, handcart thiab hloov txee lub qhov rooj txais yuav tsum mechanical locking txoj kev kom tau raws li tus" tsib kev tiv thaiv" muaj nuj nqi;

6. Muaj ntau qhov chaw nyob hauv chav cable thiab ntau lub cables tuaj yeem txuas nrog;

7. Qhov hloov ceev hauv av yog siv rau hauv av thiab kaw luv luv;

8. Kev tiv thaiv qib ntawm lub plhaub yog IP3X, thiab qib kev tiv thaiv yog IP2X thaum qhib lub qhov rooj ntawm chav nqa khoom;

9. Cov khoom ua tau raws li GB 9306-2006, DL/T 04-2007 thiab tau txais cov qauv thoob ntiaj teb IEC 928 los ntawm kev siv.

Hom	Rated Tam sim no A	Rated voltage kV	Rated zaus Hz
KYN61-40.5	1250,1600,2000	40.5	50

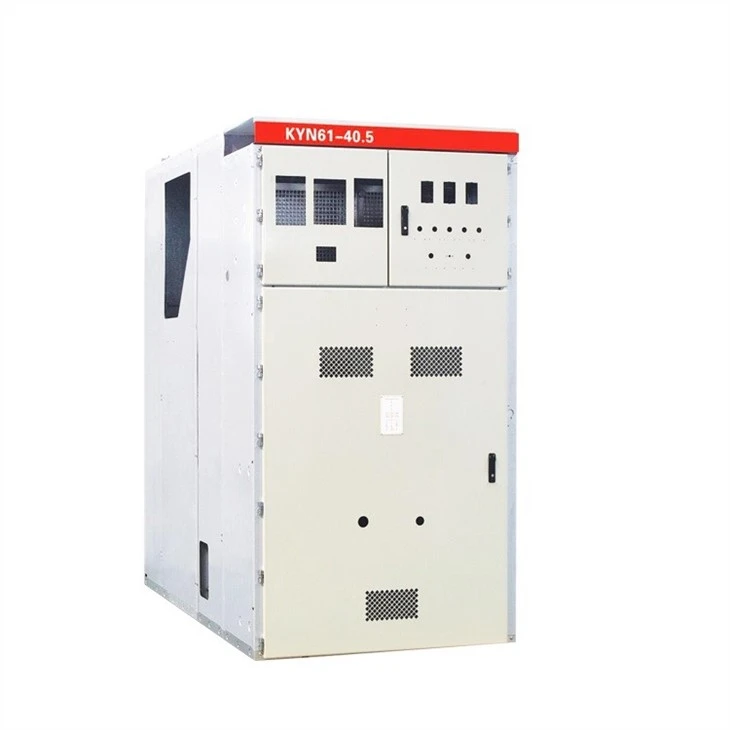

KYN61-40.5 Metal Clad Movable Switchgear

Installation ntawm switchgear

1. Qhov siab ntawm chav hluav taws xob: ≥4500mm;

2. Qhov kev ncua deb ntawm sab nraum qab ntawm lub txee rau phab ntsa: ≥1500mm;

3. Lub flatness ntawm lub hauv paus ncej: ≤1mm / m2;

4. Ib feem ntawm lub hauv paus embedded channel steel saum av yuav tsum tsis pub tshaj 3 hli;

5. Nws tuaj yeem kho rau ntawm lub hauv paus los ntawm bolts lossis vuam;

6. Qhov dav ntawm txoj kev khiav haujlwm ntawm lub switchgear (ib kab): ≥3000mm, ob chav kab (lub ntsej muag rau lub ntsej muag) ≥4000mm.

KYN61-40.5 Metal Clad Switchgear
