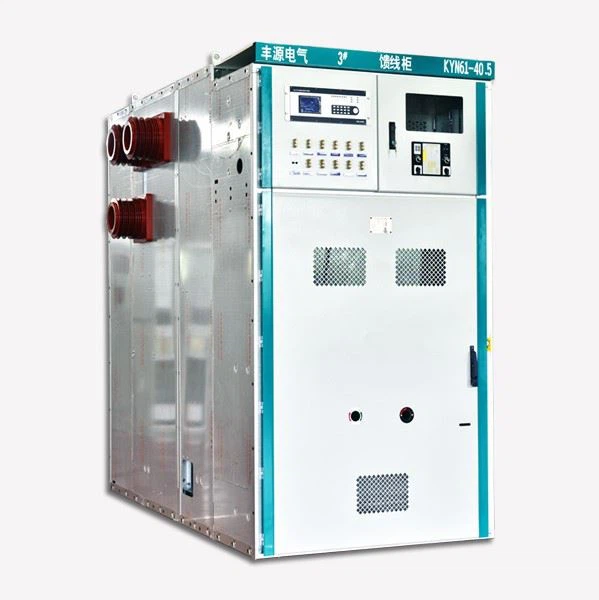

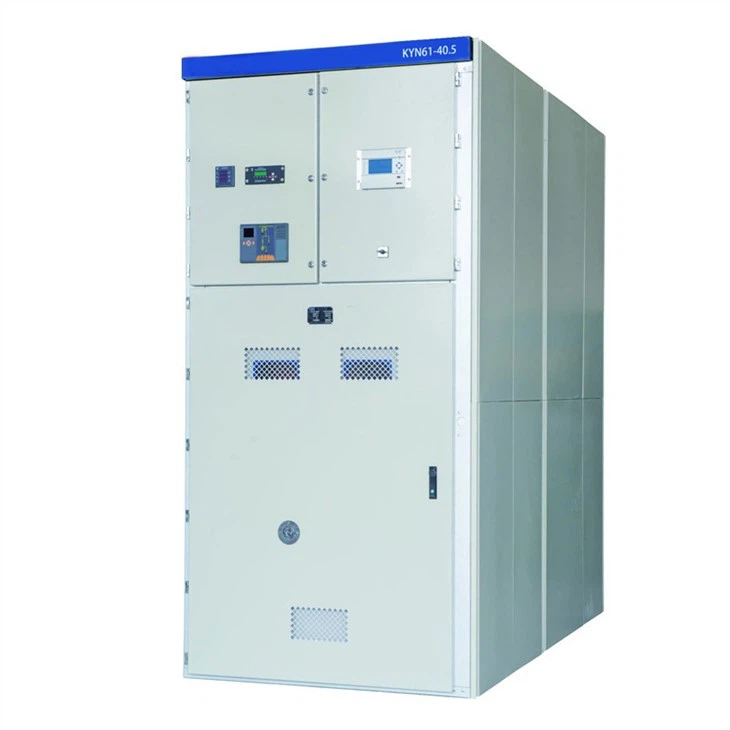

KYN61 HV Switchgear Earthing Switchcabinet
KYN61-40.5 tshem tau AC hlau-clad switchgear siv rau 40.5kV, 3 theem, AC thiab 50/60Hz hluav taws xob hluav taws xob network rau kev txais thiab xa tawm lub zog hluav taws xob thiab tseem rau kev tswj, saib xyuas thiab tiv thaiv ion. Nws muaj feem xyuam rau lub zog dav dav thiab lub sijhawm nrog kev ua haujlwm nquag. Cov khoom ua raws li GB3906: 3 ~ 35kV AC Hlau Enclosed Switchgear, IEC60694 & GB/T11022: Cov lus qhia dav dav ntawm HV Switchgear thiab controlgear Standard, DL / T404-1997: Order Technical term of Indoor AC HV Switchgear thiab IEC 62271-200 1~ 52kV AC Metal Enclosed Switchgear thiab controlgear standard.
Hauj lwm lawm

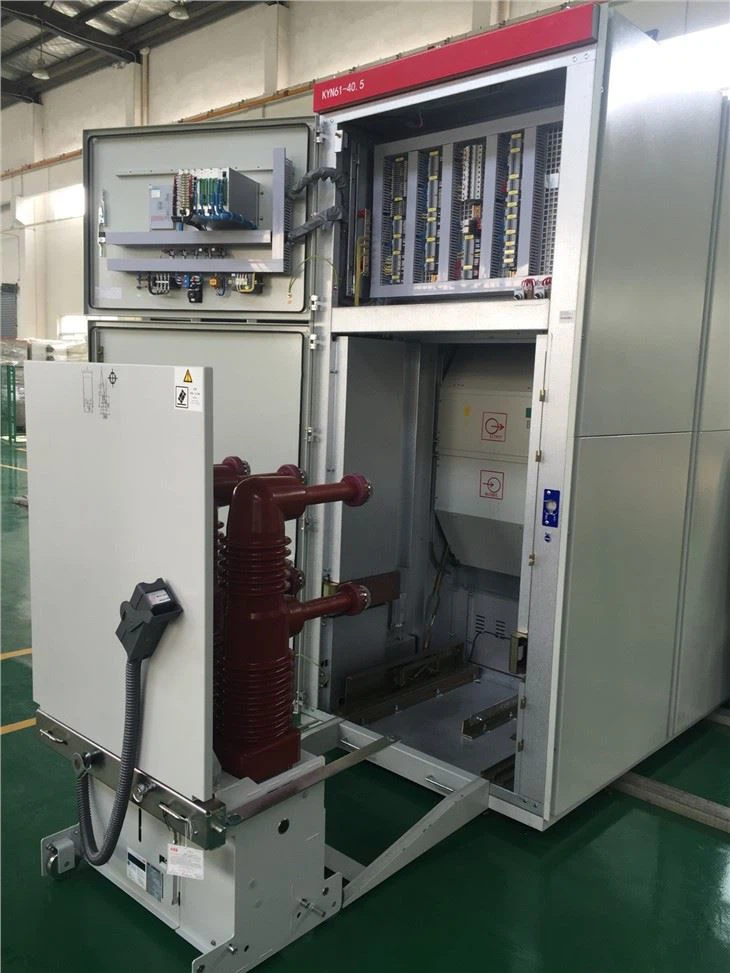

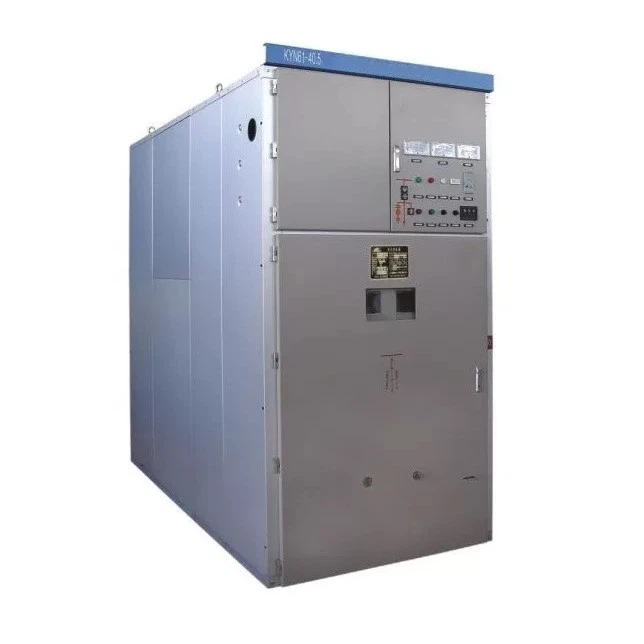

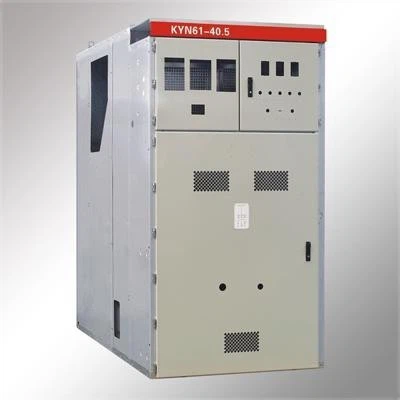

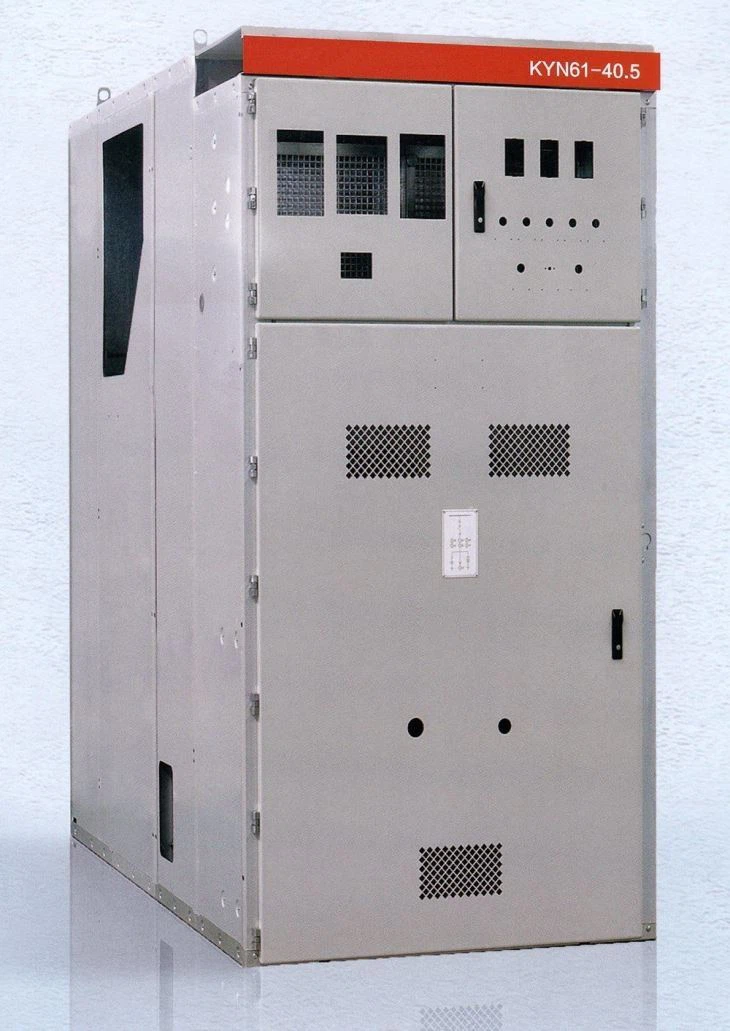

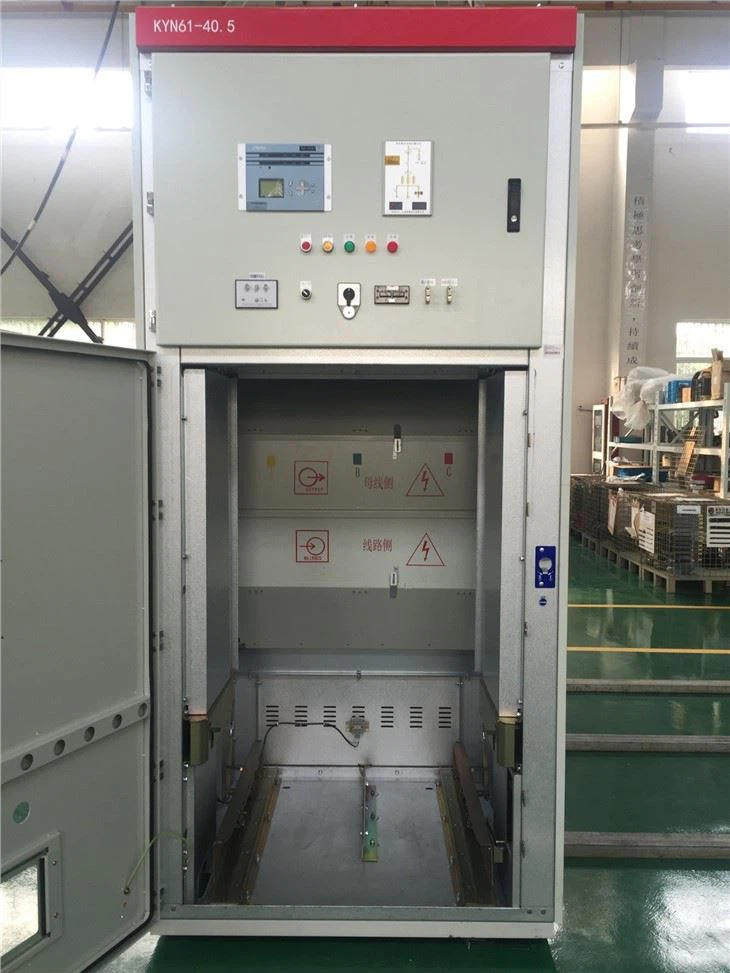

KYN61 HV switchgear earthing switchcabinet
KYN61 armored tshem tau AC hlau enclosed hloov khoom siv ( hearinafter hu ua "switchgear"). Nws muaj feem xyuam rau peb theem AC 50Hz, 35 - 40kV lub zog hluav taws xob, nws yog siv rau kev txais thiab ditibuting hluav taws xob hluav taws xob thiab kev tswj xyuas, tiv thaiv thiab saib xyuas lub voj voog.
Kev pabcuam
◎ Ambient cua kub: -15 degree ~ ntxiv 40 degree ;
◎ Cov av sib txheeb: Qhov nruab nrab txhua hnub Tsawg dua lossis sib npaug li 95 feem pua, thiab nruab nrab txhua hnub ntawm cov dej vapor siab < 2.2kPa;
Lub hli nruab nrab Tsawg dua lossis sib npaug li 90 feem pua, thiab qhov nruab nrab txhua hli ntawm cov dej vapor siab <1.8kPa;
◎ Qhov siab: ^ 1000m;
◎ Seismic siv: Tsis pub tshaj 8 degree
◎ Cov huab cua nyob ib puag ncig yuav tsum tsis muaj kuab paug ntawm corrosive lossis flammable gas lossis vapor;
◎ Tsis pom kev vibration;
Qauv | KYN61-40.5 |
Rated voltage | 40.5 |
Ntau zaus | 50 HZ |
Rated Tam sim no | 1250A/1600A/2000A |
IP Qib | IP3X |
Ib puag ncig kub | -10 C ~ ntxiv 40 C |
Khoom siv | specification |
Kev Qhia Txog Kev Kho Mob | Yuav tsum tau ntxuav thiab muab tso rau hauv qhov chaw qhuav |
Main Electric Parameters
Tsis muaj. | Cov khoom | Chav tsev | Tsis muaj | ||
1 | Rated voltage | KV | 40.5 | ||
2 | Rated zaus | Hz | 50 | ||
3 | Lub ntsiab busbar ntsuas tam sim no | A | 1250,1600,1200 | ||
4 | Ceg busbar ntsuas tam sim no | A | 630/1250/ 1600 | ||
5 | Rated rwb thaiv tsev theem | Fais fab zaus withstand voltage nyob rau hauv 1min (zoo tus nqi) | Phase-phase, Phase-hauv av | KV | 95 |
| KV | 115 | |||
Lightning Impulse Withstand Voltage (tus nqi siab tshaj) | Phase-phase, Phase-hauv av | KV | 185 | ||
| KV | 215 | |||
Fais fab zaus withstand voltage ntawm pab tswj Circuit Court | V | 2000 | |||
6 | Rated luv Circuit Court breaking tam sim no | KA | 25/31.5 | ||
7 | Rated luv Circuit Court kaw tam sim no (peak tus nqi) | KA | 63/80 | ||
8 | Rated luv-lub sij hawm tiv taus tam sim no (4S) | KA | 25/31.5 | ||
9 | Rated ncov tiv taus tam sim no | KA | 63/80 | ||
10 | Rated voltage ntawm pab tswj Circuit Court | V | -110,-220,~220 | ||
11 | Qib tiv thaiv | Enclosure IP4X, IP2X Thaum lub qhov rooj ntawm Circuit Court breaker qhib | |||
12 | Qhov loj me (dav * qhov tob * qhov siab) | mm | 1400 (1200) * 2800 (2600) * 2600 (* suav nrog cov txheej txheem SF6 sab hauv) | ||
13 | hnyav | kg | ~2300 | ||
CHAW UA HAUJ LWM
EXHIBITION
CERTIFICATE
LUB TSEV KAWM NTAWV
FAQ
Q6 : Koj yog cov chaw tsim khoom lossis tuam txhab lag luam?
A: Peb yog lub Hoobkas, Raws li 100 feem pua ntawm cov chaw tsim khoom nrog 20 xyoo kev tsim khoom, peb tuaj yeem tsim cov khoom raws li cov neeg siv khoom xav tau thiab peb tuaj yeem tswj cov khoom zoo 100 feem pua.
Q7 : Tus nqi puas tuaj yeem sib tham?
A: Yog, tus nqi sib tham. Nws tuaj yeem hloov pauv raws li koj qhov ntau lossis pob
Q8 : Yuav ua li cas txog kev tshuaj xyuas?
A: Peb muaj tag nrho cov kev tshuaj xyuas los ntawm cov khoom siv raw mus rau qhov kawg cov khoom suav nrog kev ntsuas kub nce, ntsev tsuag tshuaj ntsuam xyuas tus neeg xyuas pib hom kev xeem, kev sim lub neej.
Q9 : Cov nqe lus them nqi yog dab tsi?
A: TT, Paypal, Western Union, Alibaba kev lees paub kev lag luam thiab L / C tau txais. 30 feem pua T / T ua ntej, 70 feem pua ua ntej xa zaub mov.
Q10 : Lub tuam txhab muab kev pabcuam yog dab tsi?
A: Peb muaj cov kws tshaj lij engineer pab pawg uas tuaj yeem tsim thiab tsim pwm kom tuaj txog cov neeg siv khoom sib txawv.
Peb kuj muaj pab pawg muag khoom los muab kev pabcuam zoo los ntawm kev muag khoom ua ntej mus rau tom qab muag.
