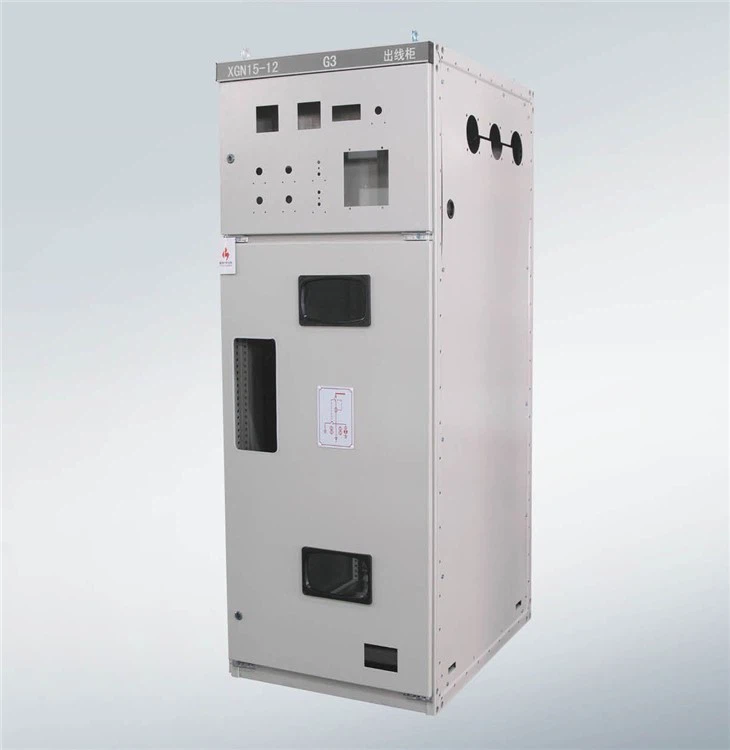

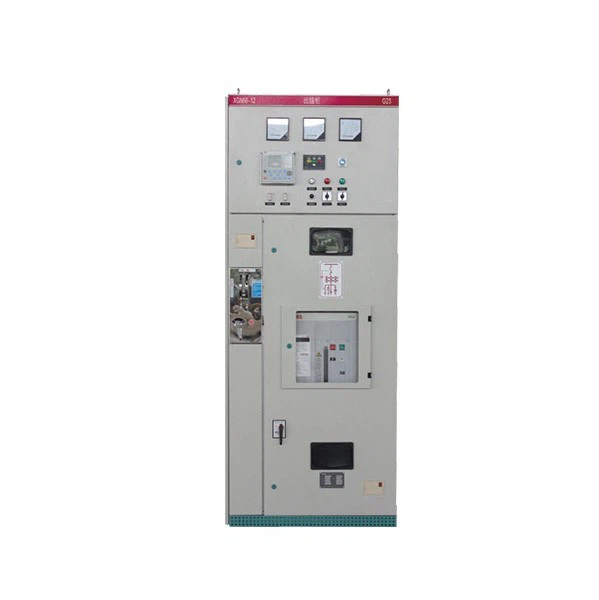

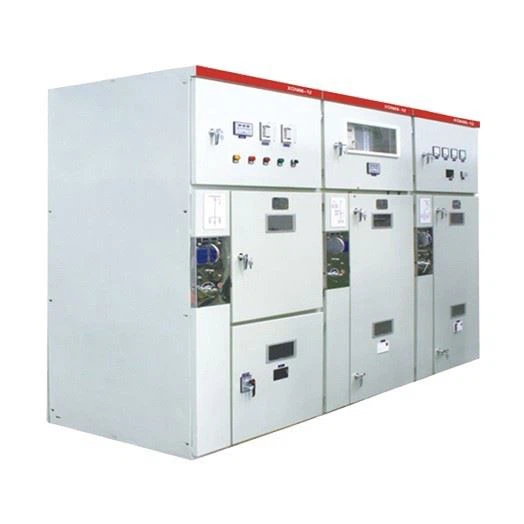

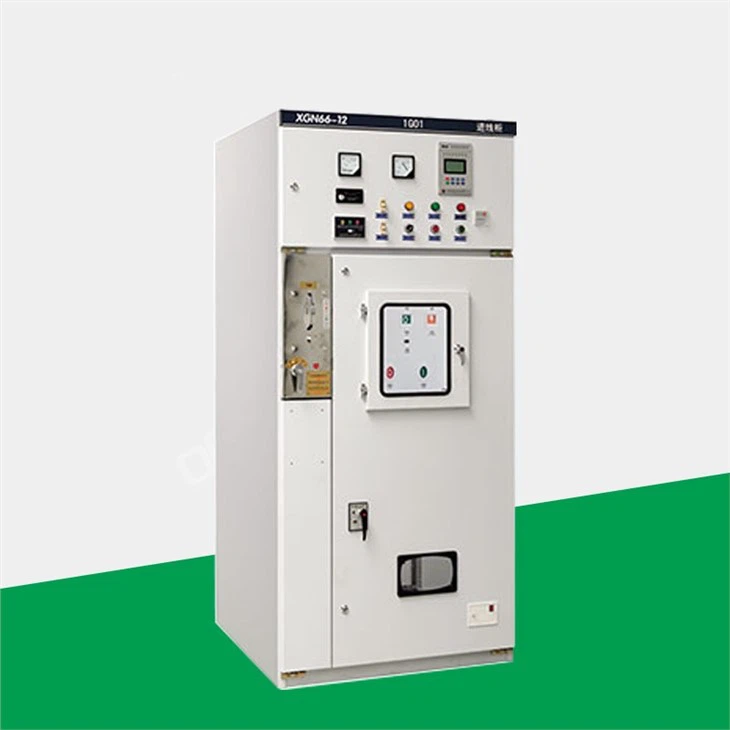

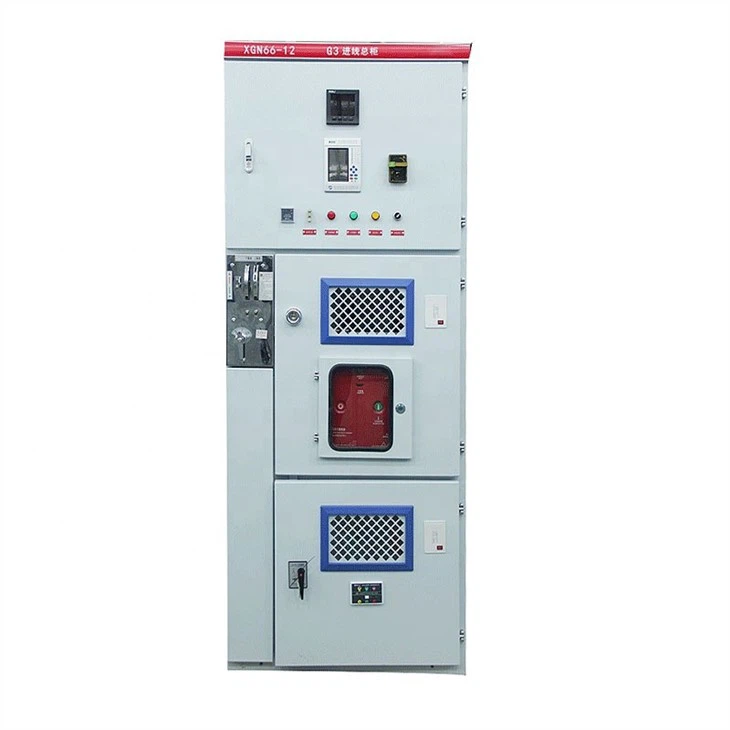

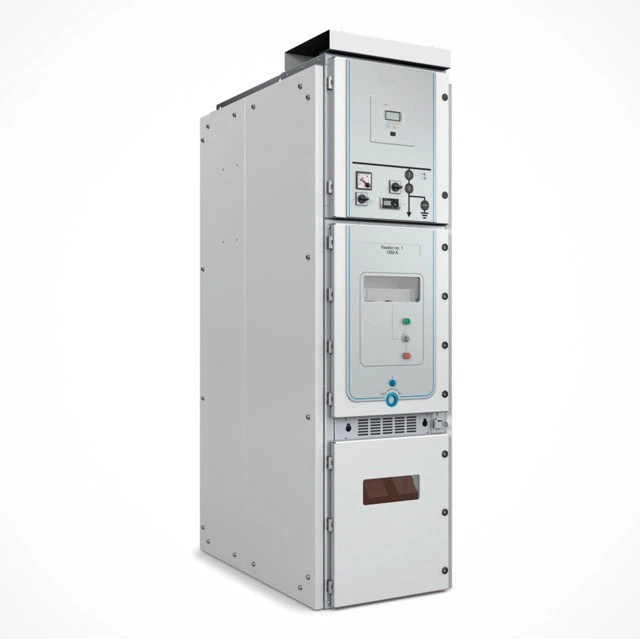

XGN66-12 Hluav taws xob 21KV Distribution Panelboard
XGN66-12 hom tsau kaw switchgear yog peb lub tuam txhab tiam tshiab ntawm high-voltage hluav taws xob cov khoom ua tiav. Cov khoom no yog qhov me me, tsuas yog 50 feem pua ntawm qhov ntim ntawm cov khoom hloov pauv zoo tib yam: cov khoom siv hluav taws xob muaj kev ntseeg siab thiab kev ua haujlwm zoo: Lub ntsuas phoo mechanism yog txhim khu kev qha thiab yooj yim. Lub txee hloov yog ib qho kev ua tiav sab hauv tsev ntawm 3.6.7.2.12kV peb-theem alternating tam sim no 50Hz ib leeg busbar segmentation rau kev txais thiab faib hluav taws xob hluav taws xob. Nws kuj muaj lub luag haujlwm ntawm kev tswj hwm, tiv thaiv thiab saib xyuas lub voj voog. Nws tuaj yeem siv rau hauv ntau hom fais fab nroj tsuag, substations, industrial thiab mining enterprises, high-sawv vaj tse thiab lwm qhov chaw. Nws kuj tseem tuaj yeem ua ke nrog lub nplhaib network txee thiab siv hauv kev hloov chaw.
Hauj lwm lawm
XGN66-12 hluav taws xob 21KV faib panelboard
XGN66-12 lub thawv hom tsau AC hlau kaw qhov hloov pauv (tom qab no hu ua "switchgear") muaj feem xyuam rau 3.6-12KV ob-theem AC 50Hz system ua ib qho khoom siv rau kev txais thiab faib hluav taws xob hluav taws xob , thiab tsim nyog rau cov chaw ua haujlwm nquag thiab kev hloov pauv ntawm switchgear nruab nrog cov roj hloov. Lub tsheb npav yog ib lub tsheb npav ib leeg thiab ib lub tsheb npav nkaus xwb. Lub txee hloov ua tau raws li qhov xav tau ntawm GB3906 3.6 - 40.5kV AC Hlau Enclosed Skyopening Equipment and Control Equipment and DL404 Technical Conditions for Ordering Indoor AC High Voltage Switch txee. Lub txee hloov tau zoo nkauj zoo nkauj, me me, thiab muaj kev ua tiav thiab txhim khu kev qha los tiv thaiv kev ua haujlwm tsis zoo. Rau lub ntsiab hloov VS 1-12 lossis ZN28-12 lub tshuab nqus tsev vacuum breaker nruab rau hauv lub txee hloov, GN30-12 thiab GN{12}} disconnectors yog siv rau kev sib cais tua, thiab JN{{ 13}} grounding keyboards yog siv rau grounding keyboards.
Cov xwm txheej ntawm kev siv
1. Ambient kub: siab tshaj 40 degree, yam tsawg kawg nkaus - 15 degree ; 2. Qhov siab: tsis tshaj 1000m; 3. Qhov txheeb ze av noo: tus nqi nruab nrab txhua hnub tsis ntau tshaj 95 feem pua, thiab tus nqi nruab nrab txhua hli tsis tshaj 90 feem pua; 4. Kev siv av qeeg yuav tsum tsis pub tshaj 8 5. Qhov chaw tsis muaj hluav taws kub, tawg, muaj kuab paug loj, tshuaj lom neeg corrosion thiab kev co hnyav.
Technical parameter
Tsis muaj. | Yam khoom | Chav tsev | Technical data | ||
1 | Rated voltage | kV ua | 3.6, 7.2, 12 | ||
2 | Rated tam sim no | A | 630 1000 | 1250 2000 | 2500 3150 |
3 | Rated luv Circuit Court breaking tam sim no | kA | 20 | 31.5 | 40 |
4 | Rated lub sij hawm luv luv tiv taus tam sim no | kA | 20 | 31.5 | 40 |
5 | Rated ncov tiv taus tam sim no | kA | 50 | 80 | 100 |
6 | Rated luv Circuit Court ua tam sim no | kA | 50 | 80 | 100 |
7 | Rated duration ntawm luv luv Circuit Court | s | 4 | ||
8 | Qib kev tiv thaiv | IP2X | |||
9 | Bus system | Ib lub tsheb npav ib leeg, ib lub npav nrog bypass, ob lub npav | |||
10 | Txoj kev ua haujlwm | Electromagnetism, caij nplooj ntoos hlav cia zog | |||
11 | Daim ntawv dimension | mm | 950^1000x2300 (hauv qab 1250A) | ||

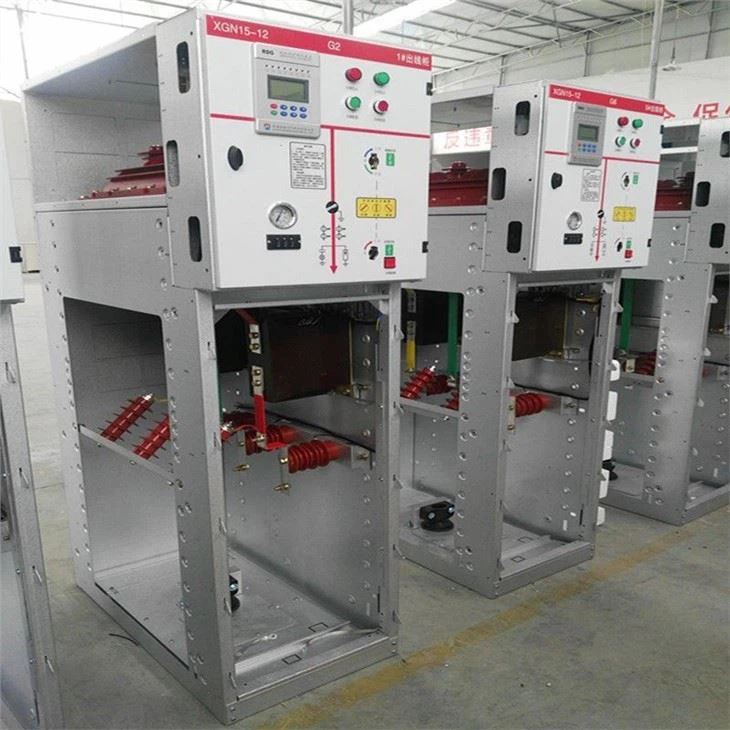

PRODUCTION LINE
