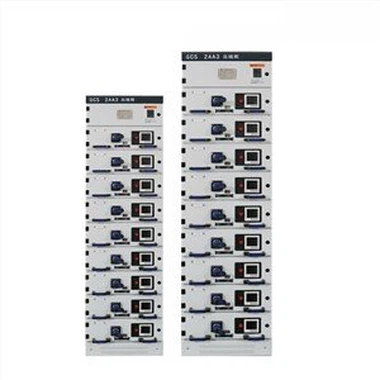

Tsau Switchgear Vaj Huam Sib Luag

Hauj lwm lawm

GCK hluav taws xob tsawg hluav taws xob tshem tawm yog siv dav hauv cov chaw tsim hluav taws xob, chaw hloov pauv, chaw ua haujlwm thiab chaw ua lag luam thiab chaw faib khoom hluav taws xob thiab chaw faib hluav taws xob MCC hauv cov tsev siab, raws li AC 50-60Hz, rated ua hauj lwm voltage ntawm 660V thiab qis dua, thiab rated tam sim no Kev siv hluav taws xob ua tiav cov khoom siv hluav taws xob tau siv rau kev faib hluav taws xob thiab lub cev muaj zog nruab nrab tswj thiab cov hluav taws xob tiv thaiv hluav taws xob hauv cov tshuab hluav taws xob thiab cov tshuab fais fab ntawm 4000A thiab hauv qab.

Cov Kev Kawm Siv Tau

Rated rwb thaiv tsev voltage	AC 660V ， AC 1000V
Nyob ua hauj lwm voltage	AC 380 V ， AC 660 V
Nyob ua ntau zaus	50Hz
Qhov siab tshaj plaws tam sim no ntawm pub Circuit Court	3150A
Qhov siab tshaj plaws tam sim no ntawm tub rau khoom Circuit Court	3150A
Muaj peev xwm ntau ntawm kev tswj lub cev muaj zog	320KW
Kab rov tav lub tsheb thauj mus los ntawm qhov siab tshaj qhov tam sim no (0.1S)	63KA 、 105KA 、 176KA
Muaj peev xwm ntau ntawm kev tswj lub cev muaj zog	320KW
Ntsug tsheb npav qhov siab tshaj qhov tam sim no (0.1S)	63 KA 、 105 KA
Ntsug busbar luv-lub sij hawm nrog tam sim no (1S)	30 KA 、 50 KA
Tus nqi hluav taws xob ntau ntsuas voltage (1min)	2500V
Thib ob lub zog hloov hluav taws xob nrog voltage (1min)	2500V
Kev tiv thaiv theem	IP30 、 IP40
