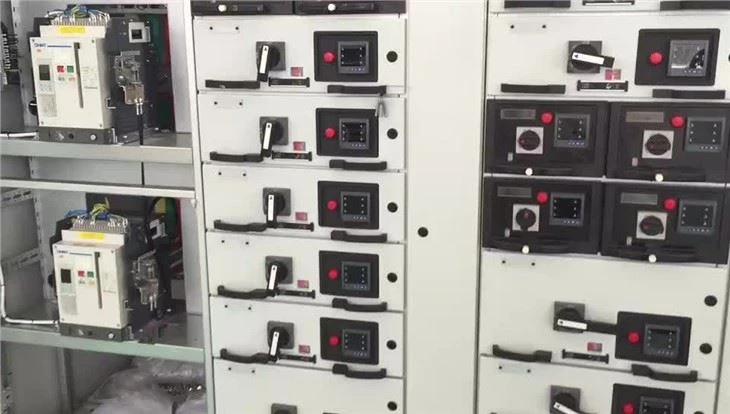

GCK 300V Hluav taws xob tswj vaj huam sib luag
Cov koob ntawm GCK / MSN / GCS LV rho tawm switchgear yog ib hom kev sib txuas hom switchgear, nws cov thev naus laus zis mus txog qib thoob ntiaj teb. Nws yog tsim rau transformer chaw nres tsheb, hluav taws xob fais fab nroj tsuag, petrochemical kev lag luam, metallurgicalsteel dov, tsheb zog, lub teeb thiab textile kev lag luam, thiab nyob rau hauv lub zej zog, lub tsev siab .. thiab lwm yam. Raws li kev sib tham ntawm lub zog hluav taws xob, kev faib khoom & kev tswj hwm rau cov khoom siv hluav taws xob faib hluav taws xob ntawm AC {{0}}}Hz cov kev pabcuam voltage 660V lossis tsawg dua .Nws ua raws li IEC60439 tus qauv "Low Voltage rho tawm switchgear. Ua raws li IEC529 thiab DIN40050 qauv IP30 tiv thaiv rau Ntau dua los yog sib npaug rau Ø2.5mm Khoom tiv thaiv IP40 tiv thaiv ntau dua lossis sib npaug rau Ø1.0mm Khoom tiv thaivIP54 tiv thaiv plua plav thiab txaws hauv txhua qhov kev taw qhia
Hauj lwm lawm
GCK 300V hluav taws xob tswj vaj huam sib luag
Txee qauv
Nws cov qauv yooj yim yog kev sib dhos ntawm C hom profiles uas ua los ntawm phaj dabtsi yog khoov nrog E=25 module
installation qhov. Tag nrho cov txee thiab sab hauv compartments yog purification kev kho mob ntawm zinc plating. Cov
qhov rooj panels thiab sab panels yog electrostatic sprayed.Lub txee yooj yim qauv yog raws li daim duab.1 thiab yooj yim
loj li duab.2 (table 1 thiab 2)
Txee hom
1.Power Distribution Center switchgear (PC): tuaj yeem txais Emax, MT, 3WN, AH, ME series Circuit Court breakers.
2.Motor control center switchgear (MCC): nws yog lub rooj sib txoos ntawm cov tub rau khoom loj & me, txhua lub hauv paus loj
Hloov yog siab tawg molded rooj plaub Circuit Court breaker los yog rotation hom load so hloov nrog fuse. Hwj chim
factor automatic them nyiaj txee yog nrog phau ntawv los yog tsis siv neeg thiab tej thaj chaw deb fais fab kev them nyiaj
ntaus ntawv.
| 1 | Rated rwb thaiv tsev voltage | 660V(1000)V |
| 2 | Rated ua hauj lwm voltage | 380V, 400V, 415V, 440V, 480V, 660V AC |
| 3 | Qhov siab tshaj plaws ua haujlwm tam sim no ntawm lub tsheb npav loj | 5000A |
| 4 | Rated withstand tam sim no ntawm lub ntsiab busbar | 100kA/1s |
| 5 | Main busbar ntsuas peak withstand tam sim no | 220kA/0.1s |
| 6 | Kev khiav hauj lwm siab tshaj tam sim no ntawm kev faib tsheb npav (nruab npav) | 1000A |
| 7 | Peak tam sim no ntawm kev faib tsheb npav ( ntsug busbar): | |
| 8 | Hom qauv | 105kA(Max)/0.1s |
| 9 | Hom kev txhawb zog | 176kA(Max)/0.1s |
1. Lub ntsiab ncej txais 8MF hom qhib hom hlau, ob sab ntawm cov hlau yog module mounting qhov 20mm thiab 100mm thiab txoj kab uas hla ntawm 9.2mm, nyob rau hauv installation yooj yooj yim thiab yooj yim.
2. Lub ntsiab ncej sib dhos yog tsim los ntawm ob hom, tag nrho cov qauv sib dhos thiab ib feem (sab ncej thiab nqaj) vuam qauv, rau cov neeg siv xaiv
3. Txhua chav ua haujlwm ntawm cov cuab yeej raug cais tawm ntawm ib leeg, thiab cov khoom sib cais tau muab faib ua cov chav ua haujlwm ua haujlwm, chav tsheb npav thiab lub chamber cable.
4.Lub ntsiab kab rov tav busbar txais cov txee rov qab kab rov tav kev txhim kho lub peev xwm ntawm kev tiv thaiv hluav taws xob hluav taws xob ntawm lub tsheb npav, yog cov kev ntsuas tseem ceeb ntawm lub ntsiab Circuit Court ntawm lub cuab yeej nrog lub zog luv luv Circuit Court muaj peev xwm.
5.Qhov tsim ntawm cable compartment yog heev yooj yim mus nce thiab nqis
6.Qhov dav dav cabiner dimension series ntawm cov cuab yeej (saib cov lus hauv qab no)
H | 2200 | |||||||||
W | 400 | 600 | 800 | 1000 | ||||||
D | 800 | 1000 | 800 | 1000 | 600 | 800 | 1000 | 600 | 800 | 1000 |
CHAW UA HAUJ LWM
CERTIFICATE
EXHIBITION
LUB TSEV KAWM NTAWV
FAQ
Q5 : Puas yog OEM / ODM muaj?
A: Yog, nws yog! Peb cov khoom tuaj yeem tsim kho. Peb muaj pab pawg tsim thiab engineers, peb tuaj yeem kho cov khoom raws li cov neeg siv khoom kos duab lossis cov kev xav tau.
Q6 : Koj yog cov chaw tsim khoom lossis tuam txhab lag luam?
A: Peb yog lub Hoobkas, Raws li 100 feem pua ntawm cov chaw tsim khoom nrog 20 xyoo kev tsim khoom, peb tuaj yeem tsim cov khoom raws li cov neeg siv khoom xav tau thiab peb tuaj yeem tswj cov khoom zoo 100 feem pua.
Q7 : Tus nqi puas tuaj yeem sib tham?
A: Yog, tus nqi yog sib tham. Nws tuaj yeem hloov pauv raws li koj qhov ntau lossis pob
Q8 :Yuav ua li cas rau kev soj ntsuam?
A: Peb muaj tag nrho cov kev tshuaj xyuas los ntawm cov khoom siv raw mus rau qhov kawg cov khoom suav nrog kev ntsuas kub nce, ntsev tsuag tshuaj ntsuam xyuas tus neeg xyuas pib hom kev xeem, kev sim lub neej.
Q9 :Cov nqe lus them nqi yog dab tsi?
A: T.T, Paypal, Western Union, Alibaba kev ruaj ntseg kev lag luamthiab L/C yog txais tau. 30% T / T ua ntej,70 feem puatshuav nyiaj li cas ua ntej khoom xa tuaj.
