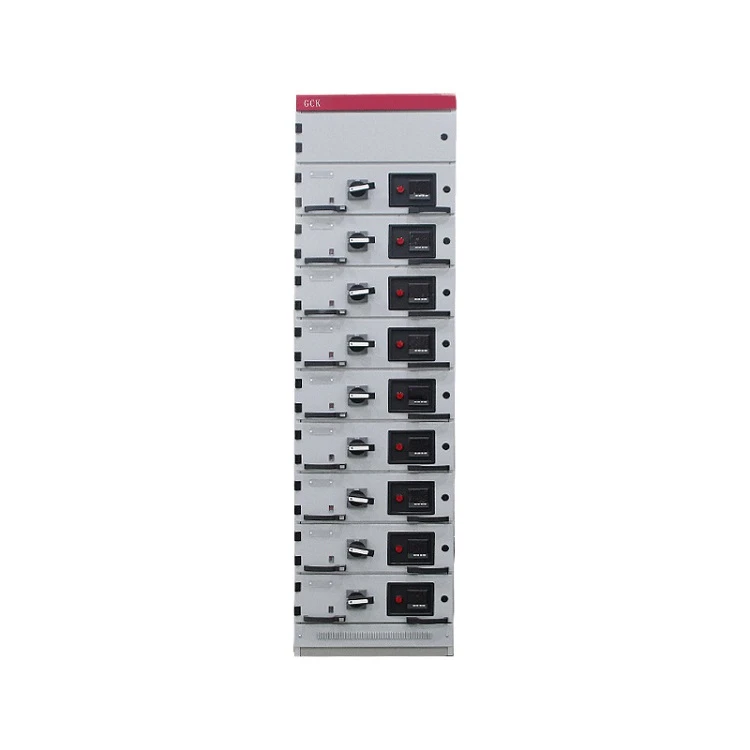

Tsawg Voltage Hluav Taws Xob Boards
GCK series rho tawm switchgear yog siv nyob rau hauv cov tshuab nrog AC 690V thiab hauv qab no thiab ntsuas zaus ntawm 50 ~ 60Hz. Nws yog siv rau kev txais hluav taws xob, kev pub mis, kev siv hluav taws xob reactive, hluav taws xob ntsuas hluav taws xob, teeb pom kev zoo thiab kev tswj hwm lub cev muaj zog.
Hauj lwm lawm
Tsawg Voltage Hluav Taws Xob Boards
GCK series rho tawm switchgear yog siv nyob rau hauv cov tshuab nrog AC 690V thiab hauv qab no thiab ntsuas zaus ntawm 50 ~ 60Hz. Nws yog siv rau kev txais hluav taws xob, kev pub mis, kev siv hluav taws xob reactive, hluav taws xob ntsuas hluav taws xob, teeb pom kev zoo thiab kev tswj hwm lub cev muaj zog.
Qhov Specification
| Qauv | Yam khoom | Specification | ||
| GCK | Txuj | IEC 439-1, GB 7251-1, Kev lees paub | ||
| IP qib | IP30 | |||
| Rated ua haujlwm voltage (V) | AC 360,600 Nws | |||
| Ntau zaus (Hz) | 50/60 | |||
| Rated rwb thaiv tsev voltage (V) | 660 | |||
| Cov xwm txheej ua haujlwm | Ib puag ncig | Sab hauv | ||
| Qhov siab | ≤2000m | |||
| Environmental kub | -5ºC ~ +40ºC (Qhov kub qis tshaj nyob rau hauv kev cia thiab kev thauj mus los yog -25ºC) | |||
| txheeb ze kub | ≤90% | |||
| Tswj lub cev muaj zog (kW) | 0.45~155 | |||
| Mechanical life (lub sij hawm) | 500 | |||
| Rated tam sim no (A) | Kab rov tav npav | 1600,2000,2500,3150 | ||
| Nres tsheb npav | 630,800 | |||
| Main Circuit Court tiv tauj connector | 200,400,630 | |||
| Kev pab cuam Circuit Court contactor | 10,20 | |||
| Maximum tam sim no ntawm feed circuit | PC txee | 1600 | ||
| MCC txee | 630 | |||
| Hluav taws xob Circuit Court | 1000,1600,2000,2500,3150 | |||
| Rated luv-lub sij hawm tiv taus tam sim no (kA) | 30,50,80 | |||
| Rated ncov tiv taus tam sim no (kA) | 63,105,176 | |||
| Ua haujlwm voltage (V / min) | 2500 | |||
Kev tiv thaiv kev nyab xeeb
Txhawm rau txhim kho kev nyab xeeb ntawm kev ua haujlwm thiab kev saib xyuas, lub tshuab hloov pauv tuaj yeem muab faib ua cov khoom sib txawv raws li cov txheej txheem sib txawv, uas yog, thaj tsam kab rov tav busbar, ntsug busbar cheeb tsam, thaj chaw ua haujlwm thiab thaj chaw cable. Txhua cheeb tsam yog sib cais los ntawm ib tug hlau phaj los yog ib tug insulating phaj los tsim ib tug kaw lub sij hawm qauv. Thaum twg ib chav tsev ua tsis tiav, nws yuav tsis cuam tshuam rau kev ua haujlwm ib txwm ua ntawm lwm chav, uas tuaj yeem tiv thaiv kev sib tsoo ntawm kev nthuav dav.
Txhua chav ua haujlwm (tub rau khoom) muaj lub tshuab ua kom muaj zog, sib cuam tshuam mechanism, txwv kev ntsuas, thiab lwm yam los tiv thaiv kev ua haujlwm tsis raug. Thaum lub tub rau khoom nyob rau hauv txoj hauj lwm txuas thiab lub ntsiab hluav taws xob hloov hluav taws xob, lub qhov rooj qhib tsis tau thiab lub tub rau khoom tsis tuaj yeem thim rov qab. Ntawm qhov tsis sib xws, yog tias qhov hloov pauv tsis nyob hauv lub xeev tawm, lub tub rau khoom tsis tuaj yeem muab tso rau. Txhawm rau kom muaj kev nyab xeeb, cov neeg ua haujlwm saib xyuas tuaj yeem siv lub ntsuas phoo txhawm rau txhawm rau txhawm rau txhawm rau qhib txoj haujlwm, thiab tuaj yeem ntxiv 4 padlocks tib lub sijhawm, uas muaj kev nyab xeeb thiab txhim khu kev qha hauv kev ua haujlwm.
