Tsawg Voltage LV Switchgear

GCS cov cuab yeej tsim nyog rau kev faib hluav taws xob hauv cov chaw tsim hluav taws xob, roj av, tshuaj lom neeg, metallurgy, textile, cov tsev siab siab thiab lwm yam lag luam.

Basic tsis

Main Circuit Court ntsuas voltage (v)			Hla ntws 380 (400), (660)
Kev pab cuam Circuit Court ntsuas voltage (v)			Hla ntws 220,380 (400)	Ncaj khiav 110/220
Rated zaus (HZ)			50(60)
Rated rwb thaiv tsev voltage (v)			660(1000)
Rated tam sim no (V)	The level o bus		Tsawg dua los yog sib npaug li 400
	Vertical Bus (MCC)		1000
Bus bar ntsuas lub sij hawm luv luv tam sim no (KA/1s)			50.80
Bus bar ntsuas peak tiv taus tam sim no (KA/0.1s)			105 , 176
Fais fab zaus ntsuas voltage (V / 1min)		Lub ntsiab Circuit Court	2500
		Kev pab cuam Circuit Court	1760
Bus bar		Peb-theem plaub-wire system	A, B, C, PEN
		Peb-theem tsib-wire system	A, B, C, PE, N
Chav kawm tiv thaiv			IP30, IP40

Main qauv

1. Lub ntsiab ncej yog ua los ntawm 8MF hom qhib seem hlau. Ob sab ntawm ntu steel muaj qhov sib txuas nrog cov modules ntawm 20mm thiab 100mm thiab 9.2mm nyob rau hauv nruab nrab, yog li kev txhim kho sab hauv yog hloov tau thiab yooj yim.

2. Lub ntsiab ncej sib dhos yog tsim nyob rau hauv ob daim ntawv, lub siab sib dhos qauv thiab ib nrab (sab ncej thiab beam) welded qauv rau cov neeg siv xaiv.

3. Txhua chav ua haujlwm ntawm cov cuab yeej raug cais tawm ntawm ib leeg, thiab nws cov khoom siv tau muab faib ua chav ua haujlwm, chav tsev busbar thiab chav cable. Lub luag haujlwm ntawm txhua lub chamber yog qhov ywj pheej.

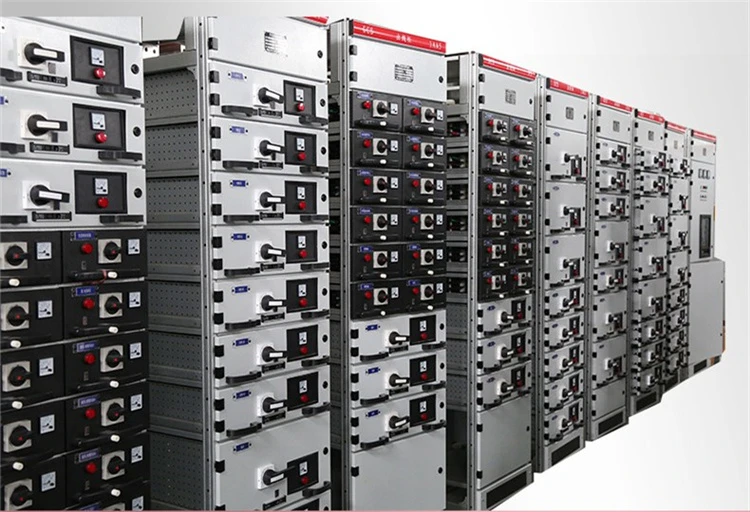

Low Voltage LV Switchgear
