VS1 MV INDOOR hlau CLAD Nqus Circuit Court BREAKER

VS1 Series Sab Hauv Tsev AC High Voltage Embedded ncej Nqus Circuit Court Breaker yog siv rau sab hauv tsev high voltage ntawm rated voltage 12kV thiab 24kV, peb theem AC 50Hz. Nws siv rau kev tswj thiab kev tiv thaiv ntawm transformer substation., mine ruaj thiab nquag siv rau kev khiav hauj lwm lub ntees.. Lub switchgear accords nrog cov qauv ntawm IEC 62271-100, IEC61439 (idt GB / T 11022), GB 1984, DIN VDE 0670 thiab lwm yam.

Xa kev nug

Hauj lwm lawm

VS1 MV INDOOR hlau CLAD Nqus Circuit Court BREAKER

Lub ntsiab nta

1. Nws yog qhov yooj yim rau kev hloov kho vim lub tshuab nqus tsev Circuit Court breaker txais kev tsim ntawm arcing chamber yog nyob rau sab sauv, kev khiav hauj lwm mechanism yog nyob rau hauv down; 2. Nws txais yuav cov qauv ntawm kev sib xyaw ntawm huab cua thiab cov organic sib xyaw insulating khoom; 3. Yooj yim caij nplooj ntoos hlav kev ua haujlwm mechanism, 10000 lub sijhawm ua haujlwm; 4. Smooth thiab zoo tus kheej-locking kev ua tau zoo vim cov hlau lead-ntsia hlau propulsion mechanism.
2. Nws txais yuav cov qauv ntawm kev sib xyaw ntawm huab cua thiab cov organic sib xyaw insulating khoom; 3. Yooj yim caij nplooj ntoos hlav kev ua haujlwm mechanism, 10000 lub sijhawm ua haujlwm;4. Smooth thiab zoo tus kheej-locking kev ua tau zoo vim cov hlau lead-ntsia hlau propulsion mechanism.

Khoom nta:

Qhov hluav taws xob tuaj yeem ncav cuag 12kV thiab 24kV, tam sim no 4000A, thiab qhov tawg tuaj yeem ncav cuag 20KA / 25KA / 31.5KA / 40kA

Haum txee loj:

Txee dav 500/550/650/800/1000mm
VCB qauv: Haum rau ABB / Siemens, Schneider thiab lwm yam hom ntawm VCB lub tshuab nqus tsev Circuit Court breaker

Ambient Conditions:

1. Ambient kub: -10 degree – ntxiv rau 40 degree
2. txheeb ze humidity: nruab nrab txhua hnub 95. hli nruab nrab 90.
3. Kev siv av qeeg: 8 degree;
4. Saturated vapor siab: qhov nruab nrab siab ntawm ib hnub yuav tsum tsis pub tshaj 2.2kPa; qhov nruab nrab siab ntawm ib hlis yuav tsum tsis pub tshaj 1.8Kpa;
5. Qhov siab saum toj no hiav txwv theem: Tsawg dua los yog sib npaug rau 1000 m (Tsuas yog cov kev cai tshwj xeeb)
6. Lub sijhawm siv tau yuav tsum tsis txhob muaj qhov kub hnyiab, tawg, corrosives thiab kev co hnyav.

Lub ntsiab technical parameters:

TSIS MUAJ	Yam khoom	Chav tsev	Technical parameters
1	Rated voltage	KV	12
2	Rated luv-ntev fais fab zaus zaus withstand voltage		42/48 (Interphase, av / tawg)
3	Rated xob laim impulse withstand voltage		42/48 (Interphase, av / tawg)
4	Rated zaus	Hz	50
5	Rated tam sim no	A	630 1250	630 1250 1600 2000 2500 3150	630 1250 1600 2000 2500 3150
6	Rated luv-circuit breaking tam sim no	KA	20/25	31.5	40
7	Rated luv-lub sij hawm withstand voltage	KA	20/25	31.5	40
8	Rated luv luv Circuit Court ntev	S	4
9	Rated ncov tiv taus tam sim no	KA	50/63	80	100
10	Rated luv Circuit Court kaw tam sim no	KA	50/63	80	100
11	Secondary Circuit Court fais fab zaus withstand voltage (1min)		2000
12	Rated ib leeg / rov qab rau sab nraub qaum capacitor pab pawg tawg tam sim no	A	630/400 (40kA: 800/400)
13	Rated capacitor bank kaw tam sim no		12.5 (ntau zaus tsis ntau dua)
14	Neeg kho tshuab lub neej	KA	20000
15	Rated tam sim no tawg lub sij hawm (hluav taws xob lub neej)	KA	20000
16	Rated luv Circuit Court tam sim no tawg lub sij hawm	sij hawm	50 (40KA Tsawg dua lossis sib npaug rau 30)
17	Dynamic thiab static contacts tso cai rau hnav cov thickness	mm	3
18	Lub sij hawm cia lub zog	s	Tsawg dua los yog sib npaug li 10
19	Tiv tauj qhib qhov nrug	mm	11±1
20	Hla mus ncig	mm	3.5±0.5
21	Hu rau lub sijhawm kaw bounce	ms	Tsawg dua lossis sib npaug rau 2 (40KA Tsawg dua lossis sib npaug rau 3)
22	Peb-theem faib / kaw lub sijhawm	ms	Tsawg dua los yog sib npaug 2
23	Qhov nruab nrab qhib ceev (kev sib cuag yog sib cais los ntawm -8mm)	m/s	1.2±0.2
24	Main conductive voj tsis kam	m/s	0.6±0.2
25	Main conductive voj tsis kam	μΩ	Tsawg dua lossis sib npaug rau 50 (630A) Tsawg dua lossis sib npaug rau 45 (1250A) Tsawg dua lossis sib npaug rau 40 (1600,2000A) Tsawg dua lossis sib npaug rau 35 (2500A lossis ntau dua)
26	Rated ua haujlwm ib ntus		0-0.3s-Co-180s-Co

circuit breaker (3)

circuit breaker (7)

High-Voltage-Vacuum-Circuit-Breaker

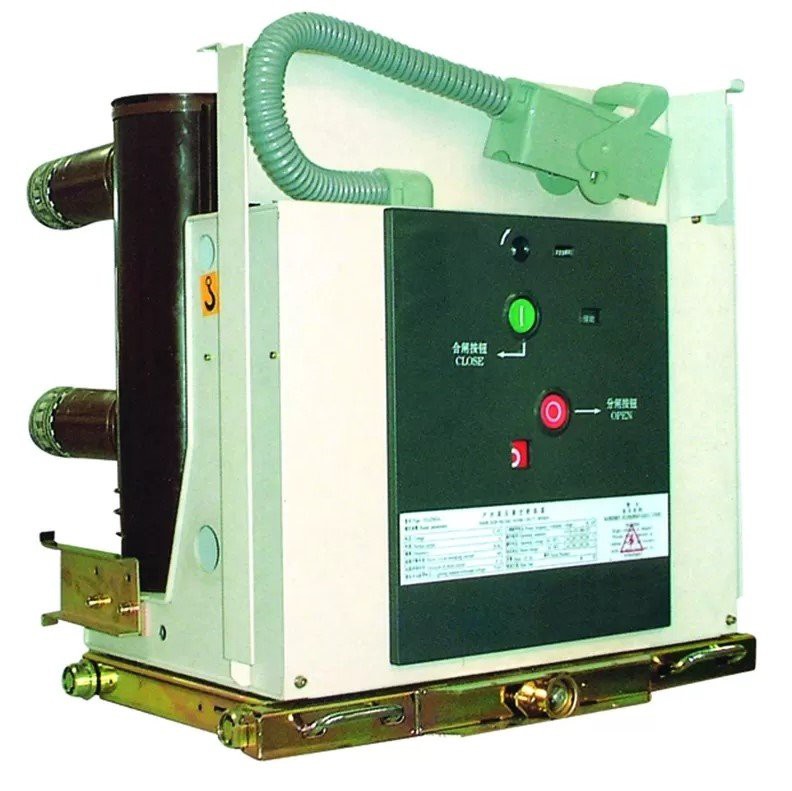

indoor_vacuum_circuit_breaker

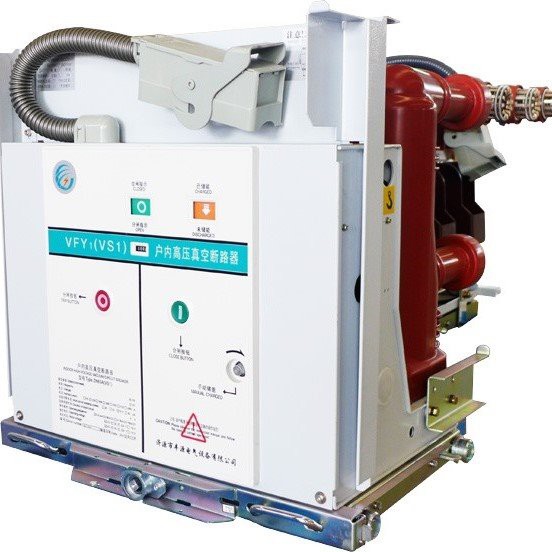

(2)
