Qhov zoo thiab qhov tsis zoo ntawm ntau yam qauv ntawm Tsawg-voltage Switchgear
May 25, 2023
Qhov zoo thiab qhov tsis zoo ntawm ntau yam qauv ntawm low-voltage switchgear
GGD hom AC low-voltage switchgear: Cov txee no muaj qhov zoo xws li cov qauv tsim nyog, yooj yim installation thiab txij nkawm, kev tiv thaiv zoo, muaj peev xwm tawg, muaj peev xwm loj, muaj zog dynamic thiab thermal stability, thiab dav practicality ntawm hluav taws xob daws teeb meem. Nws tuaj yeem siv los ua cov khoom hloov pauv. Disadvantages: nws muaj ob peb circuits, tsis tuaj yeem ua ke ntawm cov units thiab occupies ib cheeb tsam loj, thiab tsis tuaj yeem txuas nrog computers.
GCK txee: Siab sectioning peev. Zoo dynamic thiab thermal stability, siab heev thiab tsim nyog qauv, saj zawg zog hluav taws xob tswvyim, muaj zog serializability thiab versatility. Ntau lub tswv yim tuaj yeem ua ke arbitrarily, thiab lub txee tuaj yeem ua kom haum rau ntau lub voj voog, txuag thaj chaw, qib kev tiv thaiv siab, nyab xeeb thiab txhim khu kev qha, thiab kev saib xyuas yooj yim. Disadvantages: kab rov tav busbar yog teem rau sab saum toj ntawm lub txee, thiab ntsug busbar tsis muaj nplaim taws-retardant yas functional board, uas yuav tsis txuas nrog lub computer.
GCS low-voltage rho tawm switchgear: Nws muaj cov kev qhia ua haujlwm siab, tuaj yeem hloov kho raws li kev xav tau ntawm kev lag luam fais fab, thiab tuaj yeem sib tw nrog cov khoom lag luam uas twb muaj lawm. Nws yog ib hom tshiab ntawm qhov tsis tshua muaj hluav taws xob rho tawm switchgear tsim los ntawm cov hauv paus ntsiab lus ntawm kev nyab xeeb, kev lag luam, kev tsim nyog, thiab kev ntseeg tau. Nws kuj muaj peev xwm tawg thiab sib txuas, siab dynamic thiab thermal stability, hloov hluav taws xob schemes, yooj yim ua ke, muaj zog practicality, tshiab qauv, thiab qib siab tiv thaiv.

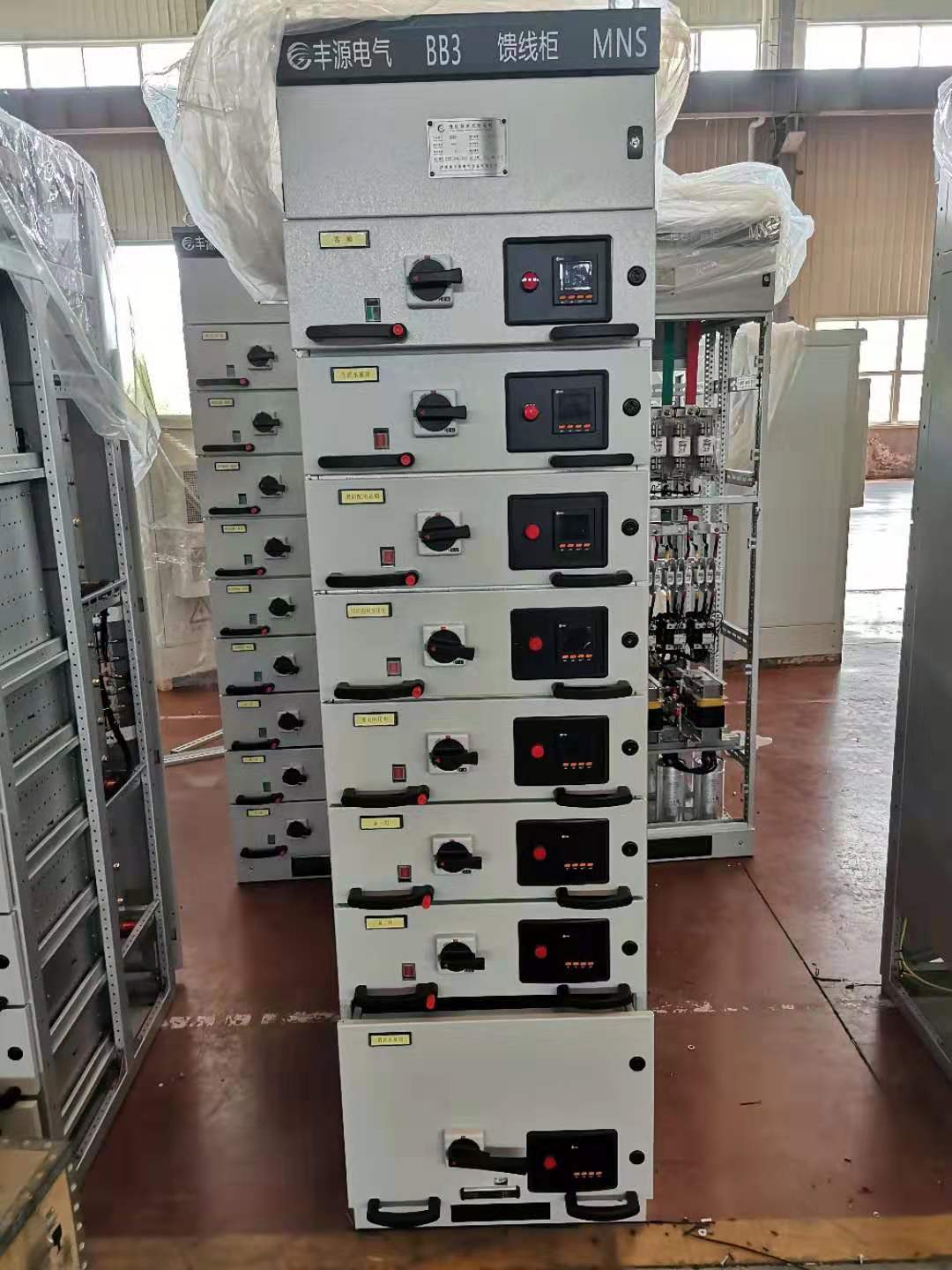

MNS series cov khoom: Lub txee lub cev yog sib sau ua ke siv C-zoo li tus hlau, nrog kev sib koom ua ke zoo li, qhov tseeb siab, thiab kev sib hloov ntawm cov tub rau khoom zoo; Qhov dav ntawm MCC txee tsuas yog 600 hli, thiab kev siv lub peev xwm loj, uas tuaj yeem ua kom haum rau ntau qhov chaw ua haujlwm thiab txuag av kev tsim kho. Cov khoom siv hauv lub txee tuaj yeem teeb tsa nrog ntau yam qauv ntawm cov keyboards raws li qhov sib txawv ntawm cov neeg siv khoom, kom ntseeg tau tias kev ua haujlwm siab thiab txhim khu kev qha ntawm cov khoom. Cov cuab yeej no tuaj yeem khaws cov automation interfaces, thiab tseem tuaj yeem nruab modules ntawm lub switchgear kom ua tiav "peb lub chaw taws teeb" ua haujlwm thiab tswj cov cuab yeej xws li chaw taws teeb teeb liab, telemetry, thiab cov chaw taws teeb tswj. Qhov tsis zoo yog tus nqi siab, Muaj qee qhov nyuaj rau cov neeg siv me thiab nruab nrab.
Qhov zoo ntawm MNS series cov khoom tseem ceeb: compact tsim, muaj zog versatility nrog ib tug me me qhov chaw thiab ib tug loj tus naj npawb ntawm functional unit qauv, saj zawg zog los ua ke, thiab 25mm module C-shaped khoom yuav ua tau raws li qhov yuav tsum tau ntawm ntau yam qauv, qib kev tiv thaiv, thiab kev siv ib puag ncig. Txais kev tsim qauv qauv, nws tuaj yeem tsim cov qauv qauv rau kev tiv thaiv, kev ua haujlwm, kev hloov pauv, kev tswj hwm, kev hloov kho, kev taw qhia, thiab lwm yam. Cov neeg siv tuaj yeem xaiv los sib sau ua ke raws li lawv xav tau.
GGD yog lub txee ruaj khov, GCK, GCS, thiab MNS yog lub txee txee
Lub tub rau khoom thawb lub tshuab ntawm GCK, GCS, thiab MNS cov khoom sib txawv
GCS txee tsuas yog siv los ua ib lub txee ua haujlwm ib sab, nrog qhov tob ntawm 800mm
MNS txee tuaj yeem siv ua ob chav ua haujlwm txee, nrog qhov tob ntawm 1000mm
Zuag qhia tag nrho, cov txee tshem tau txuag qhov chaw, yooj yim rau kev tswj hwm, muaj ntau lub voj voog tawm, thiab kim kim; Hom kev ruaj khov muaj tsawg dua qhov tawm mus thiab nyob hauv av ntau dua. Yog tias tus neeg siv khoom muab qhov chaw tsawg dhau thiab tsis tuaj yeem ua ib hom ruaj khov, nws yuav tsum tau hloov mus rau hom tub rau khoom.
KHOOM LINK
http://www.switchgear-china.com/switchgear/low-voltage-switchgear/electrical-control-panel.html

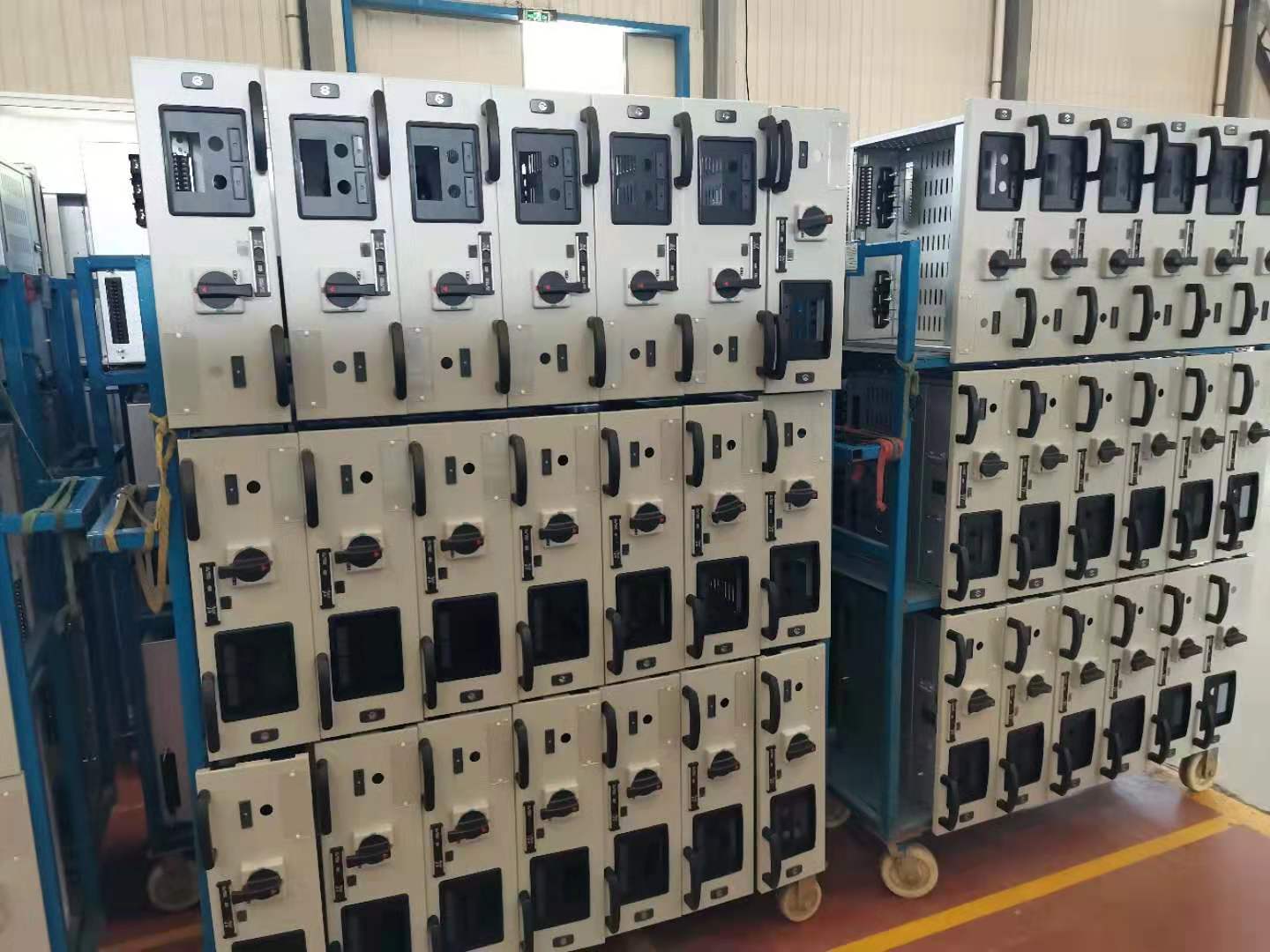

PRODUCT PHOTO
Cov khoom no feem ntau yog customized.
Peb yog cov chaw tsim khoom thiab muaj lub tuam txhab kev tshaj lij uas tuaj yeem tsim thiab muab kev daws teeb meem raws li cov neeg siv khoom xav tau.
Thov hu rau peb cov neeg muag khoom kom tau txais cov duab kos duab
Nov yog peb cov neeg siv khoom piv txwv rau koj siv
Asmeskas cov neeg siv khoom
| GCS LV rho tawm Switchgear | ||
| S.N. | Specifications | Yog / Tsis yog / Yog tias muaj |
| Hluav taws xob vaj huam sib luag (Low-voltage rho tawm switchgear txee) | ||
| Chaw tsim tshuaj paus | ||
| Hom | ||
| Hom / Qauv | GCS | |
| Lub Tebchaws Keeb Kwm | ||
| 1 | Kev piav qhia ntawm Function | |
| 1.1 | Nws yog pab pawg ntawm cov tsis tshua muaj hluav taws xob hloov hluav taws xob tshem tawm txee uas tuaj yeem ua haujlwm tau yooj yim thiab nyab xeeb. | |
| 2 | Cov kev xav tau ua haujlwm | |
| 2.1 | Cov khoom siv hluav taws xob tuaj yeem raug txiav tawm manually thiab txiav tawm thaum lub sijhawm overload thiab luv-circuit. | |
| 3 | System configuration | |
| 3.1 | Tsawg voltage switchgear tshem tau txee nrog tag nrho cov khoom tseem ceeb thiab tooj liab busbar | |
| 4 | Technical Specifications | Kev ntsuas |
| 4.1 | Main Circuit Court ntsuas voltage | 400V |
| 4.2 | Rated zaus | 50 Hz |
| 4.3 | Rated insultation voltage | 690V (1000V) |
| 4.4 | Maximum ua hauj lwm tam sim no ntawm lub ntsiab busbar (tooj liab) | 1000A |
| 4.5 | Rated withstand tam sim no ntawm lub ntsiab busbar | 100 KA/1s |
| 4.6 | Qib tiv thaiv | IP40 |
| 4.7 | Kev ua haujlwm hom | Phau ntawv thiab Automatic |
| 4.8 | Hlau tub rau khoom hom | 8E lossis 16E lossis sib npaug |
| 4.8.1 | 400A tub rau khoom | 1 Tsis muaj. |
| 4.8.2 | 300A tub rau khoom | 1 Tsis muaj. |
| 4.8.3 | 250A tub rau khoom | 1 Tsis muaj. |
| 4.8.4 | 200A tub rau khoom | 2 Tsis muaj. |
| 4.8.5 | 150A tub rau khoom | 2 Tsis muaj. |
| 4.8.6 | 100A tub rau khoom | 2 Tsis muaj. |
| 4.9 | Sab nrauv Dimension | Kwv yees li. 80 x 105 x 220 cm |
| 4.10 | Txhua lub tub rau khoom yuav tsum muaj 3-digital lossis analog ammeter ntsuas 3-theem (RYB) tam sim no ib tus zuj zus | |
| 4.11 | Busbar yuav tsum yog tooj liab peb theem plaub hlau nrog tiv thaiv Earthing (R, Y, B, N, PE). | |
| 4.12 | MCCB yuav tsum yog qhov zoo & rhiab heev | |
| 4.13 | Kev khiav hauj lwm mechanism ntawm drawers yuav tsum yooj yim thiab du. | |
| 4.14 | Drawer Handle yuav tsum tau insulated heev thiab muaj zog | |
| 4.15 | Sab nrauv yuav tsum kwv yees sib phim rau (80cm X 105cm X 220cm) | |
| 4.16 | Sab nrauv tsim thiab xim yuav tsum sib phim raws li tus qauv tsim raws li pom hauv daim duab | |
| 5 | Busbar Tais | |
| 5.1 | Lub tais busbar yuav tsum tau muab ntsia rau saum toj ntawm lub compartment ntawm chav tsev ua haujlwm, thiab cov kab txuas thiab cov khoom siv hluav taws xob ntau tuaj yeem muab tso rau hauv lub tais. | |
| 5.2 | Tus naj npawb ntawm Busbar yuav tsum tau txuas nrog los ntawm cov kab ke uas twb muaj lawm rau cov khoom siv los ntawm cov txiv ntoo-bolt / Busbar trunking system raws li qhov xav tau | |
| 6 | Accessories, spares thiab consumables | |
