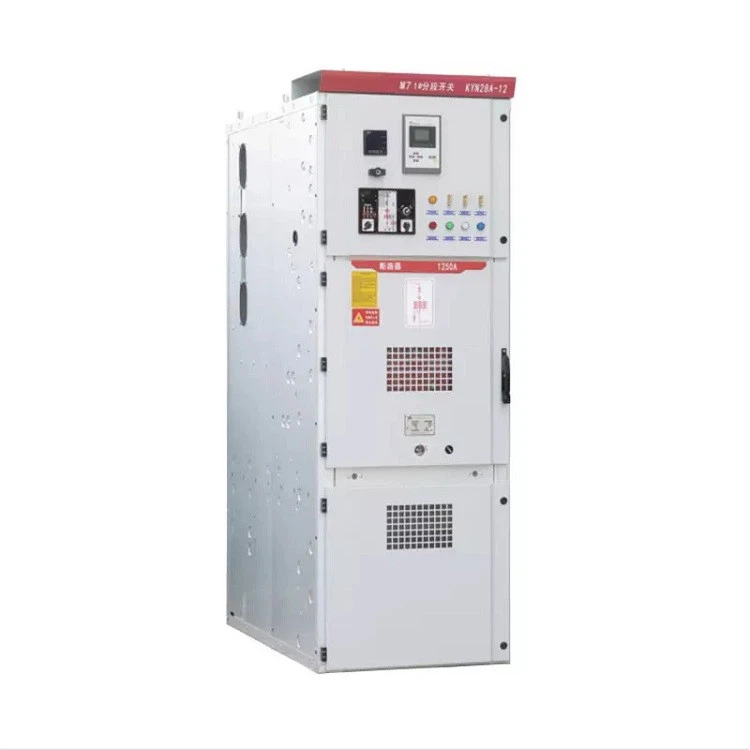

KYN28-12 Hlau Enclosed Switchgear Hluav Taws Xob Vaj Huam Sib Luag

Nws yog tsim rau peb-theem AC rated voltage 12kV, rated zaus 50Hz fais fab system, siv los txais thiab faib hluav taws xob hluav taws xob thiab tswj, tiv thaiv thiab saib xyuas lub voj voog.

Siv tej yam kev mob

1. Ambient kub: siab tshaj kub ntxiv rau 40 degree, yam tsawg kawg nkaus kub -10 degree

2. Cov av noo ib puag ncig: Txhua hnub nruab nrab cov av noo tsawg dua lossis sib npaug li 95 feem pua, txhua hli nruab nrab qhov ntsuas kub tsawg dua lossis sib npaug li 90 feem pua.

3. Qhov siab: qis dua 1000m.

4. Av qeeg tsis kam: Lub zog seismic tsis tshaj 8 degrees.

5. Cov huab cua ib puag ncig yuav tsum tsis txhob muaj kuab paug los ntawm corrosive lossis combustible gas, dej vapor, thiab lwm yam.

6. Tsis tshua muaj kev vibration qhov chaw.

7. Thaum siv nws raws li ib puag ncig ib puag ncig tau teev tseg hauv GB3906, nws yog nyob ntawm tus neeg siv thiab peb lub tuam txhab sib tham.

Lub ntsiab technical parameters ntawm KYN 28-12 hlau enclosed switchgear

Rated voltage KV 3.KV txog 12KV

Zaus Hz 50Hz, 60Hz

Rated tam sim no ntawm breaker A 630, 1250,1600,2500,3150

Rated tam sim no ntawm hloov iav 630, 1250,1600,2500,3150

Lub sijhawm luv luv tiv thaiv tam sim no KA 16,20,25,31.5,40

Peak tus nqi tiv taus tam sim no 40,50,63,80,100

Cov yam ntxwv zoo

Lub switchgear yog tsim raws li armored hlau-pob switchgear hauv GB3906-91. Tag nrho yog tsim los ntawm ob qhov chaw: lub txee lub cev thiab nruab nrab-mounted tshem tau ib feem (lub tawb nqa khoom). Lub txee tau muab faib ua plaub qhov sib cais, qib kev tiv thaiv ntawm qhov thaiv yog IP4X, thiab qib kev tiv thaiv ntawm txhua qhov chaw thiab lub qhov rooj hluav taws xob hluav taws xob tau qhib.

IP2X. Nrog nyiaj siv ua haujlwm nkag thiab tawm kab, cable nkag thiab tawm kab thiab lwm yam kev daws teeb meem. Tom qab tau npaj thiab sib xyaw ua ke, nws tuaj yeem dhau los ua cov khoom siv hluav taws xob hauv ntau lub tswv yim. Lub switchgear tuaj yeem ntsia tau, debugged thiab tswj los ntawm pem hauv ntej, yog li nws tuaj yeem muab ob npaug rau-rov qab-rov qab thiab ntsia rau ntawm phab ntsa, uas txhim kho kev nyab xeeb thiab yooj yim ntawm lub switchgear thiab txo qhov chaw hauv pem teb.

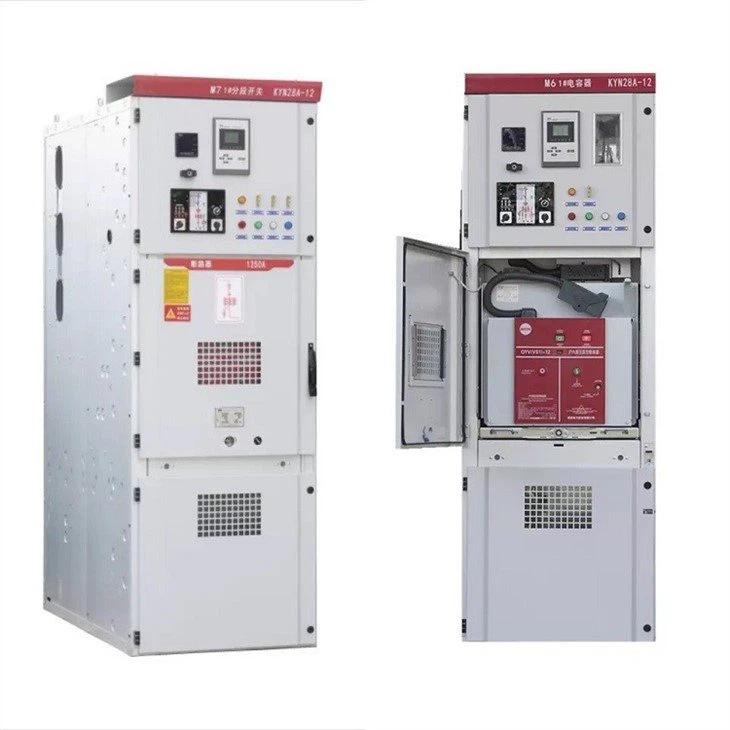

Metal Enclosed Switchgear Electrical Panel Board
